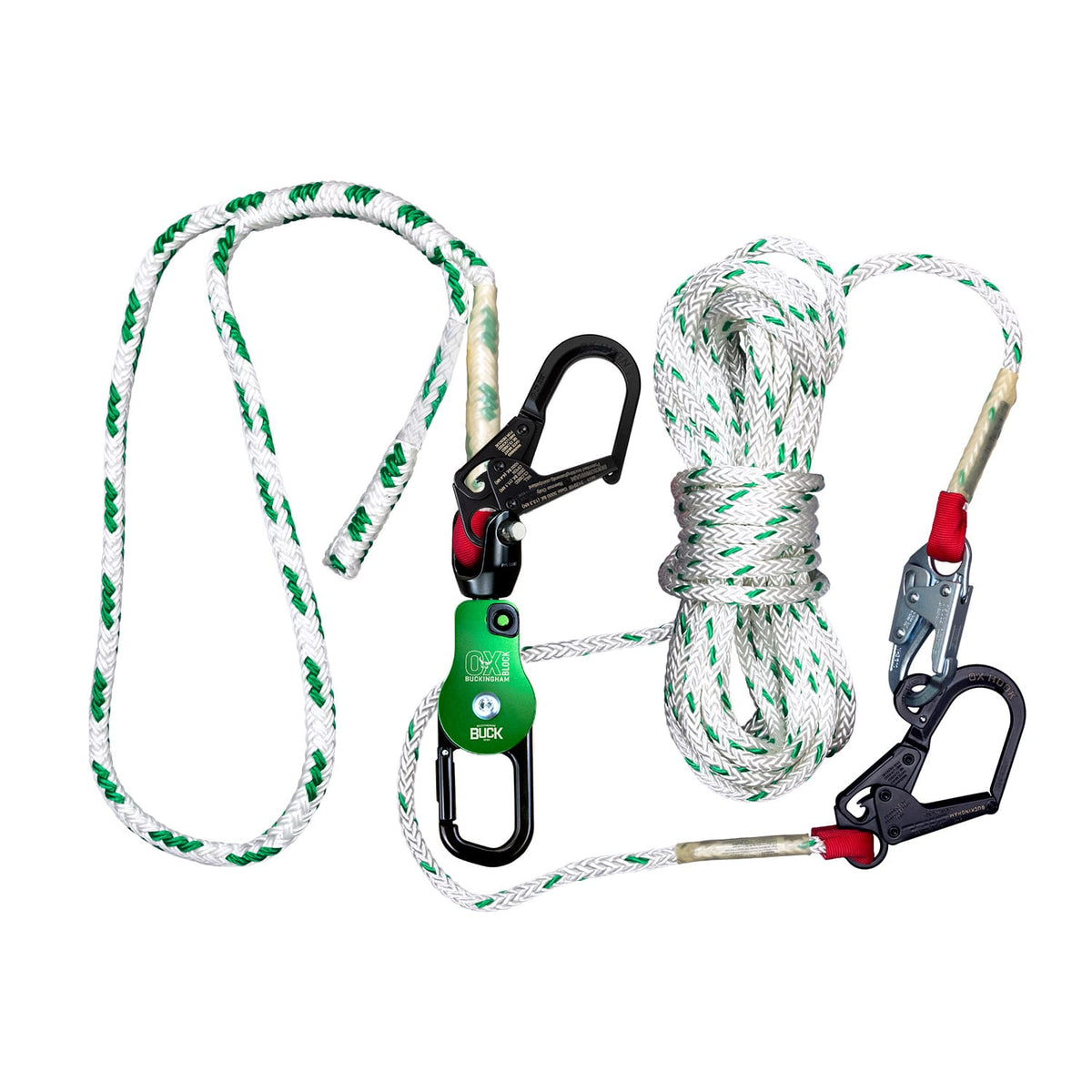

Buckingham 50063K18-4/80 OX BLOCK Buck Pin Handline Assembly with OX Hook and OX Horn, 4 FT x 5/8 IN Sling, 80 FT Handline
Buckingham 50063K18-4/80 OX BLOCK Buck Pin handline assembly with OX Hook, OX Horn, 4 FT x 5/8 IN sling and 80 FT handline, ASME B30.
Damaged or lost in transit? Let us know within 7 days.
Product details
The Buckingham 50063K18-4/80 is a complete rigging handline assembly built around the patented OX BLOCK® — a rope snatch block with an integrated friction bar for hurtman/self-rescue, lowering, raising and snubbing loads. The clevis top uses the Buck Pin, a SLIC pin customized for the OX clevis, so accessories go on and off at the press of a button — no ratchet, hex wrench or new lock nut.
Includes the OX Hook™ and OX Horn™, a 4 FT x 5/8 IN adjustable sling and an 80 FT handline. Lowering transfers tension from the worker to the block; optional pulleys build 4:1, 5:1 or 6:1 mechanical advantage. ASME B30 compliant.
- Brand
- Buckingham
- SKU / MPN
- BUCK50063K18-4/80
Product Specifications
- Model 50063K18-4/80: OX BLOCK® clevis top with Buck Pin and OX Horn™ (50063D), OX Hook™ (2406S), 4 FT x 5/8 IN adjustable sling and 80 FT handline
- OX BLOCK®: lightweight aluminum, 10-1/2 IN x 2 IN, 1-1/2 IN gate opening, 2.15 lbs; WLL 2,500 lbf sheave-to-eye (MBS 10,000 lbs), 1,500 lbf hook-to-eye (MBS 6,000 lbs)
- Buck Pin (SLIC pin) lets the user add or remove accessories at the press of a button, no lock nut required
- OX Horn™ 31291B: lightweight aluminum, 8 IN x 4-1/2 IN, 2 IN gate opening, WLL 2,500 lbs closed gate / 1,000 lbs open gate, 1.15 lbs
- OX Hook™ 2406S: forged steel, 7.83 IN x 3.87 IN, 2.01 IN gate opening, 3,000 lbf gate strength, WLL 2,500 lbs closed gate / 1,000 lbs open gate, 19.5 oz
- Integrated friction bar for hurtman/self-rescue, lowering, raising and snubbing loads; greater WLL than blocks of similar size
- Accepts optional pulleys for 4:1, 5:1 or 6:1 mechanical advantage
- OX BLOCK® is ASME B30 compliant
