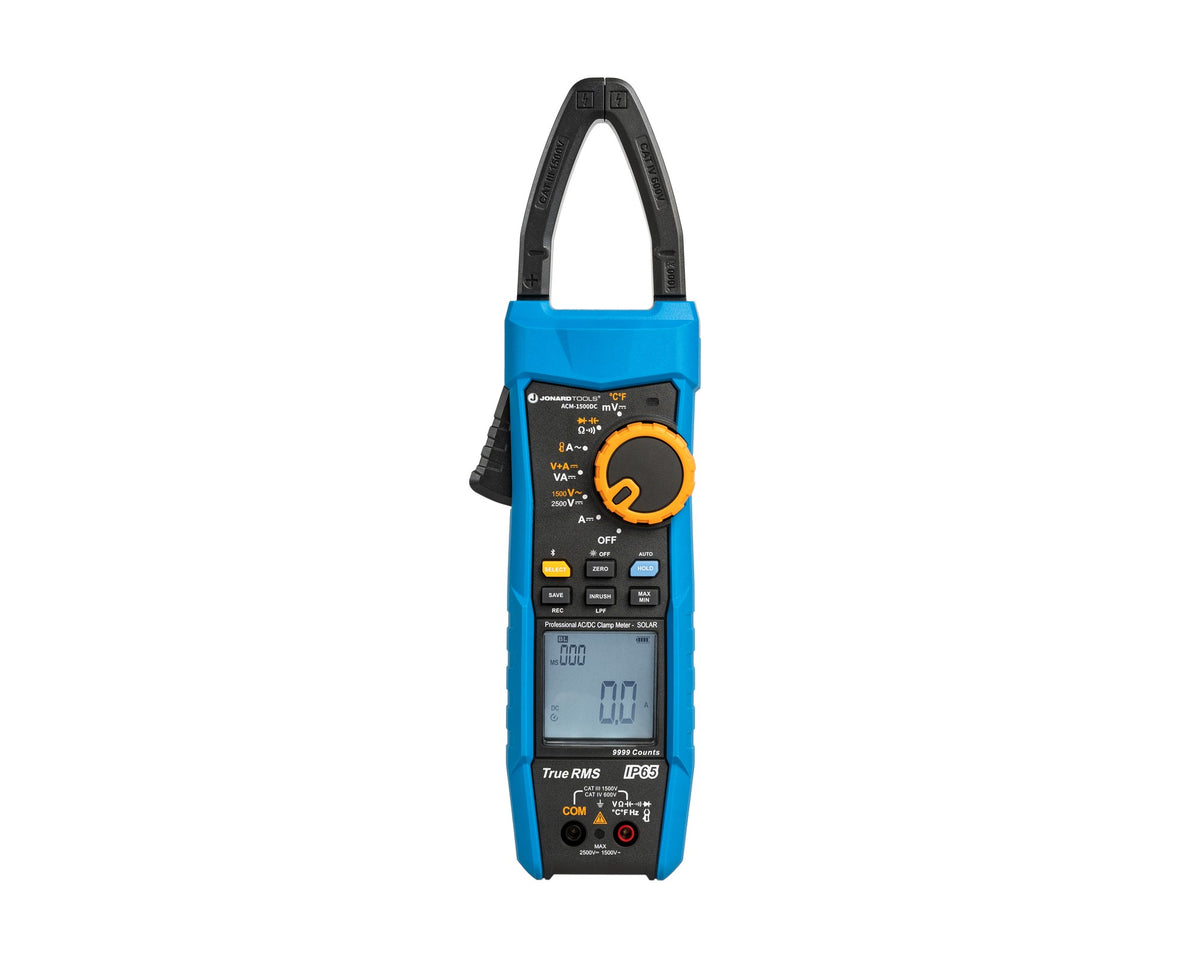

Jonard Tools ACM-1500DC Solar+ True-RMS Clamp Meter, CAT III 1500V, 999.9A AC/DC, Bluetooth
Solar+ True-RMS clamp meter rated CAT III 1500 V that reads AC/DC current to 999.9 A through 35 mm jaws and sends saved results over Bluetooth 5.0.
Damaged or lost in transit? Let us know within 7 days.
Product details

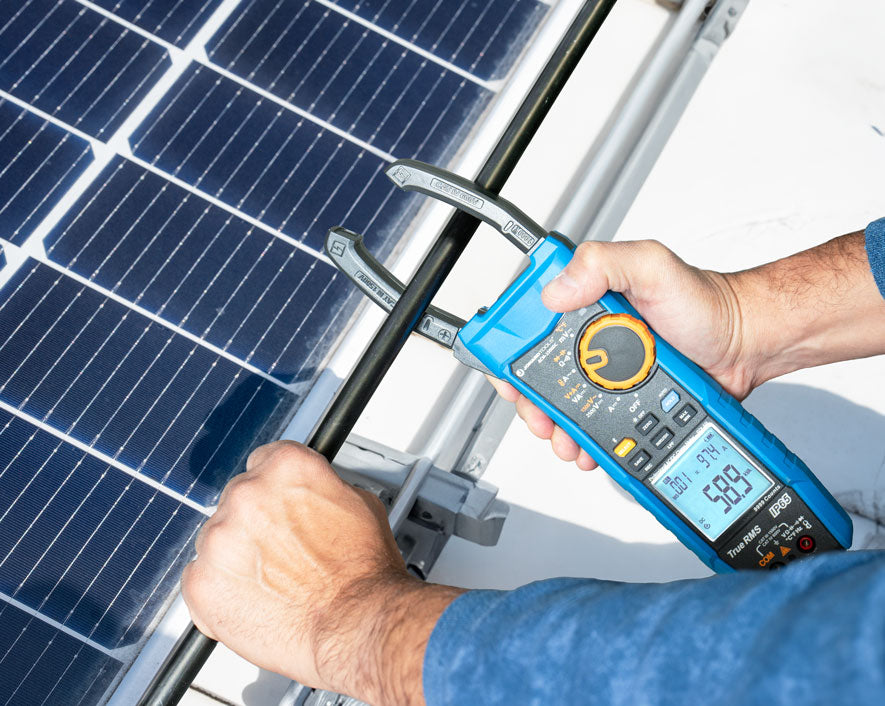

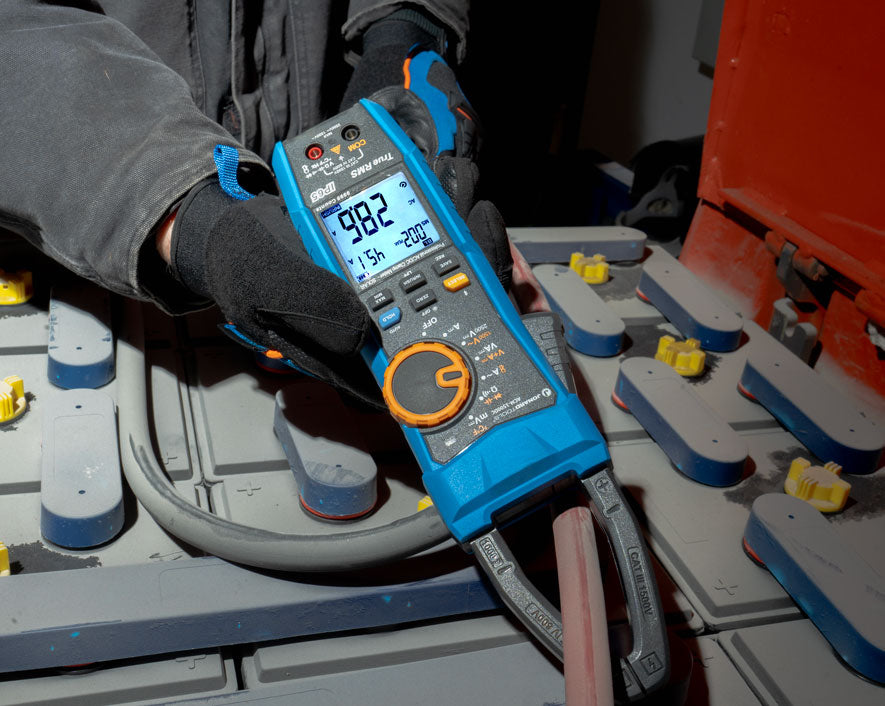

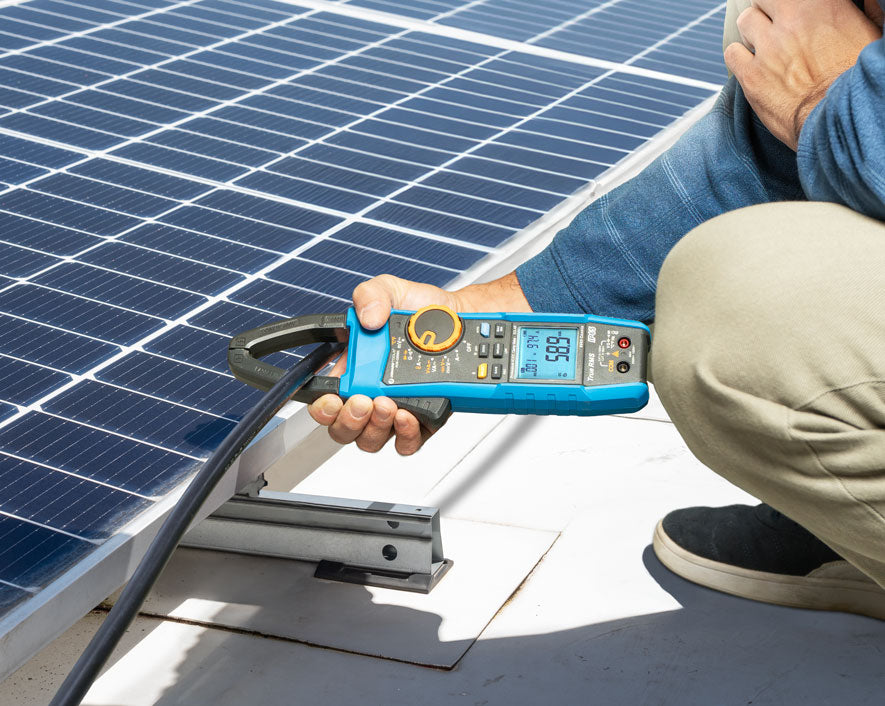

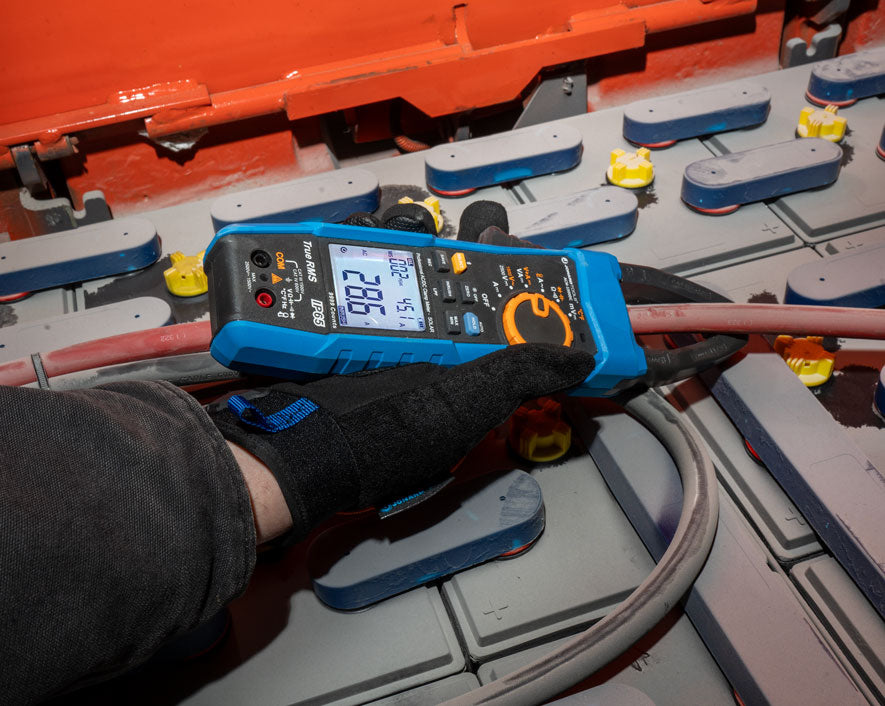

The Jonard Tools ACM-1500DC is a Solar+ True-RMS clamp meter rated CAT III 1500 V and CAT IV 600 V for high-voltage solar, wind, DC power, and data-center work. It measures AC/DC voltage up to 1500 V AC and 2500 V DC and AC/DC current up to 999.9 A through jaws that open to 35 mm (1.38 in) to fit large solar conductors. The meter also reads low-pass-filter voltage/current, inrush and peak current, DC power, resistance, continuity, diode, capacitance, and temperature, and accepts a flexible current-sensor input. On-board test results save to the device and transfer over Bluetooth 5.0.
- Brand
- Jonard Tools
- SKU / MPN
- JONAACM-1500DC
Product Specifications
- Safety rating: CAT III 1500 V, CAT IV 600 V, Class 2 double insulation
- True-RMS AC measurement technology
- Max AC voltage 1500 V; max DC voltage 2500 V
- Max AC/DC current 999.9 A
- Clamp jaw opening 35 mm (1.38 in) for large solar conductors
- Measures AC/DC voltage and current, LPF voltage/current, inrush current, peak current, DC power, resistance, continuity, diode, capacitance, temperature, and flexible current sensor input
- Capacitance measurement up to 1000 uF
- Bluetooth 5.0 with on-device data storage and transfer
- IP54 rating for dust and water resistance for outdoor solar and wind work (per Jonard instruction manual)
- Dimensions 12.25 in x 5.2 in x 2.5 in; test leads rated CAT III 1500 V DC; UPC 810132435454
