Jonard Tools CSP-RPXSM Dual-Head Cable Slitting Pliers for RPX Gel-Free Ribbon Cable, Fiber & Strength Member Access
Dual-head slitting pliers that open RPX gel-free ribbon cable and its strength member with two fixed, no-adjust blade blocks.
Damaged or lost in transit? Let us know within 7 days.
Product details

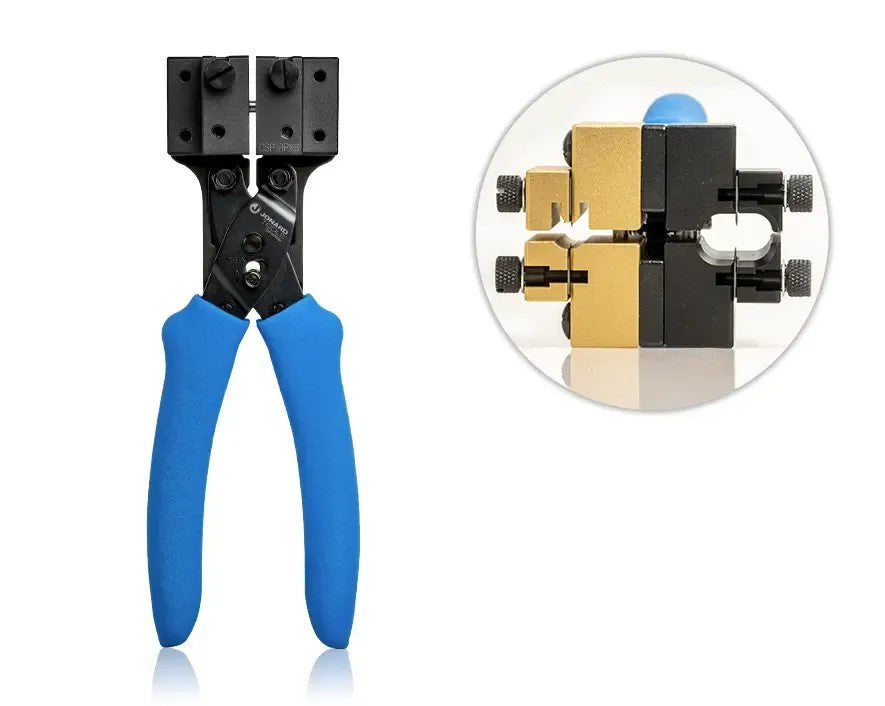

The Jonard Tools CSP-RPXSM Dual-Head Cable Slitting Pliers combine two precision-engineered blade blocks in a single double-head tool, giving fiber technicians a complete solution for RPX® gel-free ribbon cable in both Dielectric and Toneable models. One head exposes the internal ribbon fibers; the other opens the strength member and toner wire for anchoring.

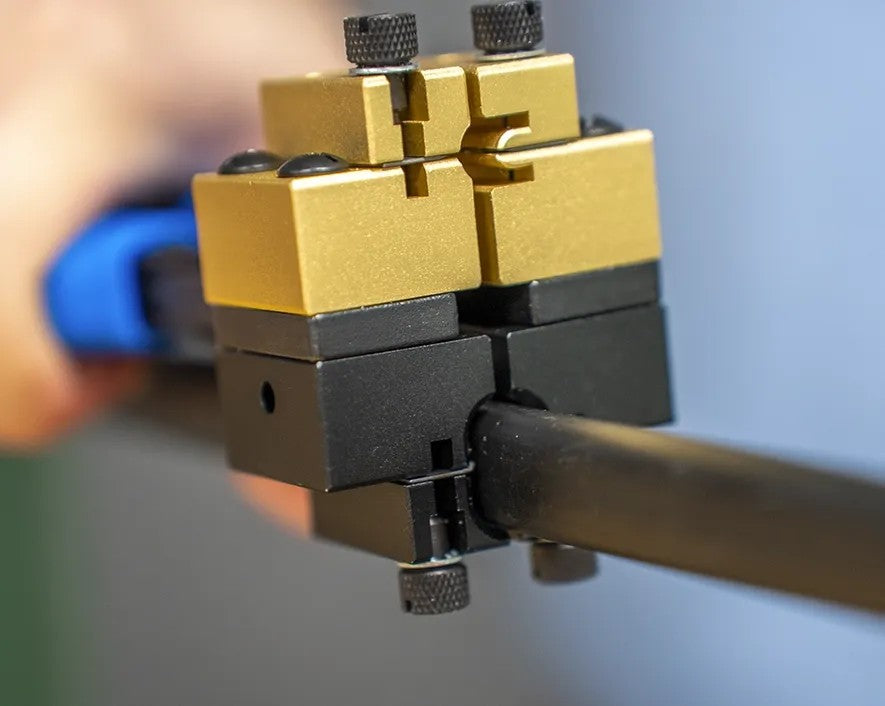

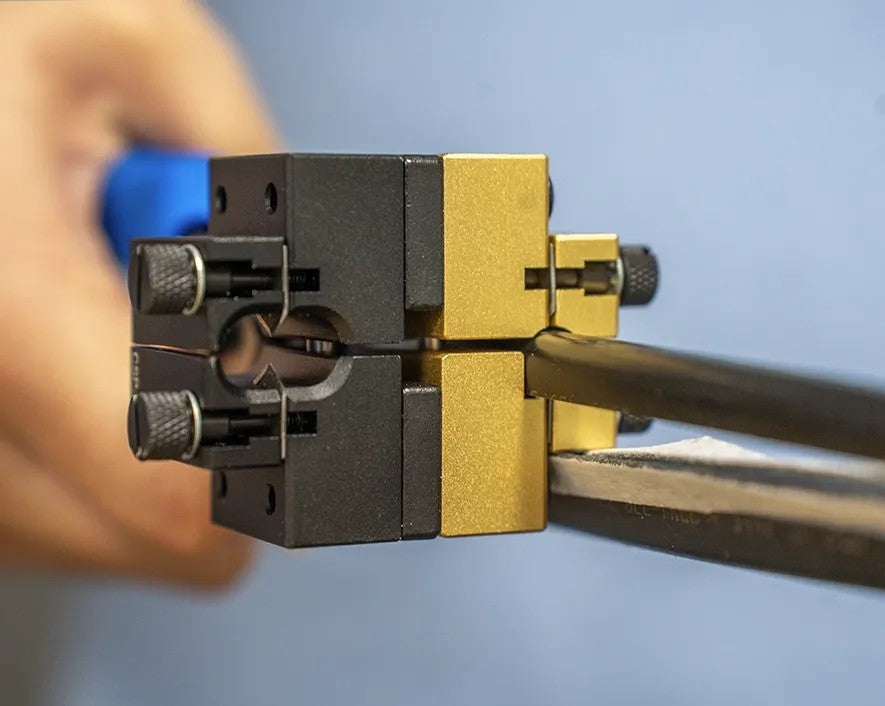

The CSP-RPXB block slits the polyethylene (PE) outer jacket for mid-span or end access, while the CSP-RPXMB block slits the jacket of the strength member and toner wire. Both blades are fixed to prevent accidental fiber damage and require no adjustment, and set screws let you replace a blade quickly in the field.
- Brand
- Jonard Tools
- SKU / MPN
- JONACSP-RPXSM
Product Specifications
- Double-head design combines two blade blocks in one tool for RPX® gel-free ribbon cable — Dielectric and Toneable models
- CSP-RPXB block slits the polyethylene (PE) outer jacket to expose internal ribbon fibers for mid-span or end access without damage

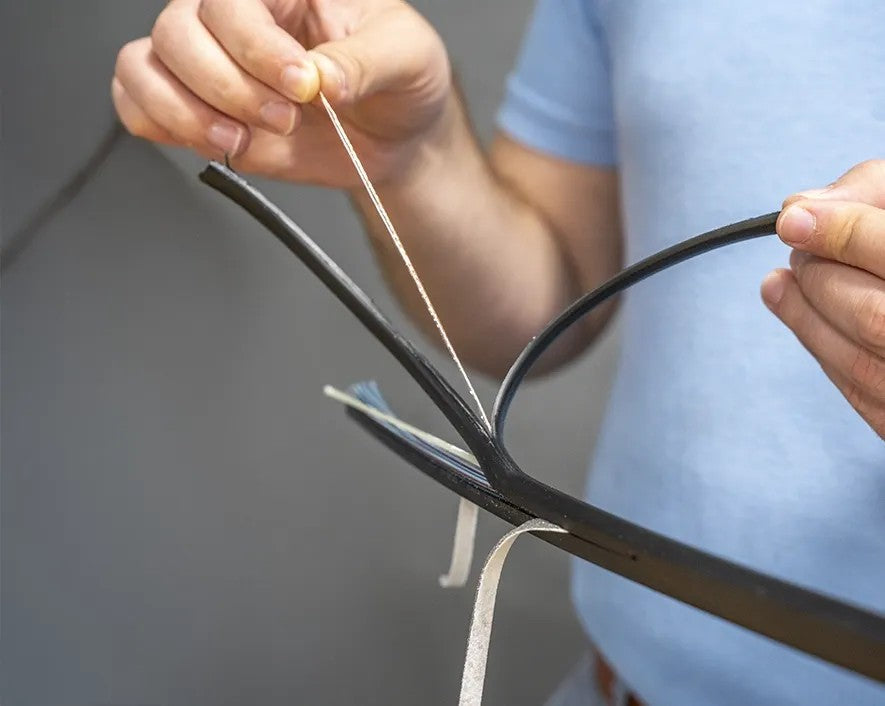

- CSP-RPXMB block slits the jacket of the strength member and toner wire for easy anchoring
- Blades are fixed to prevent accidental fiber damage and require no adjustment
- Blade depth: 2.9 mm on the RPXB outer-jacket block, 0.2 mm on the RPXMB strength member block
- Fits cable 0.30 IN to 0.34 IN (7.62 - 8.64 mm) high by 0.59 IN to 0.63 IN (14.99 - 16 mm) wide
- Messenger and toner wire capacity 20 - 24 AWG (0.205 - 0.518 mm²)
- Each blade is secured with set screws for fast replacement
- Blade blocks are secured with Phillips-head machine screws, allowing easy removal, replacement, or swapping of blocks
- Handle length 4.25 IN (110 mm)
