Jonard Tools CTV-8K Multifunctional 8K CCTV Tester, 7in Touchscreen, Android 11, 90W PoE++

SKU JONACTV-8K·In stock

Android 11 CCTV tester with a 7 IN 1280x800 touchscreen that checks IP, HD coaxial and analog cameras and powers them with up to 90 W of PoE++.

$835.95Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process

Damaged or lost in transit? Let us know within 7 days.

Product details

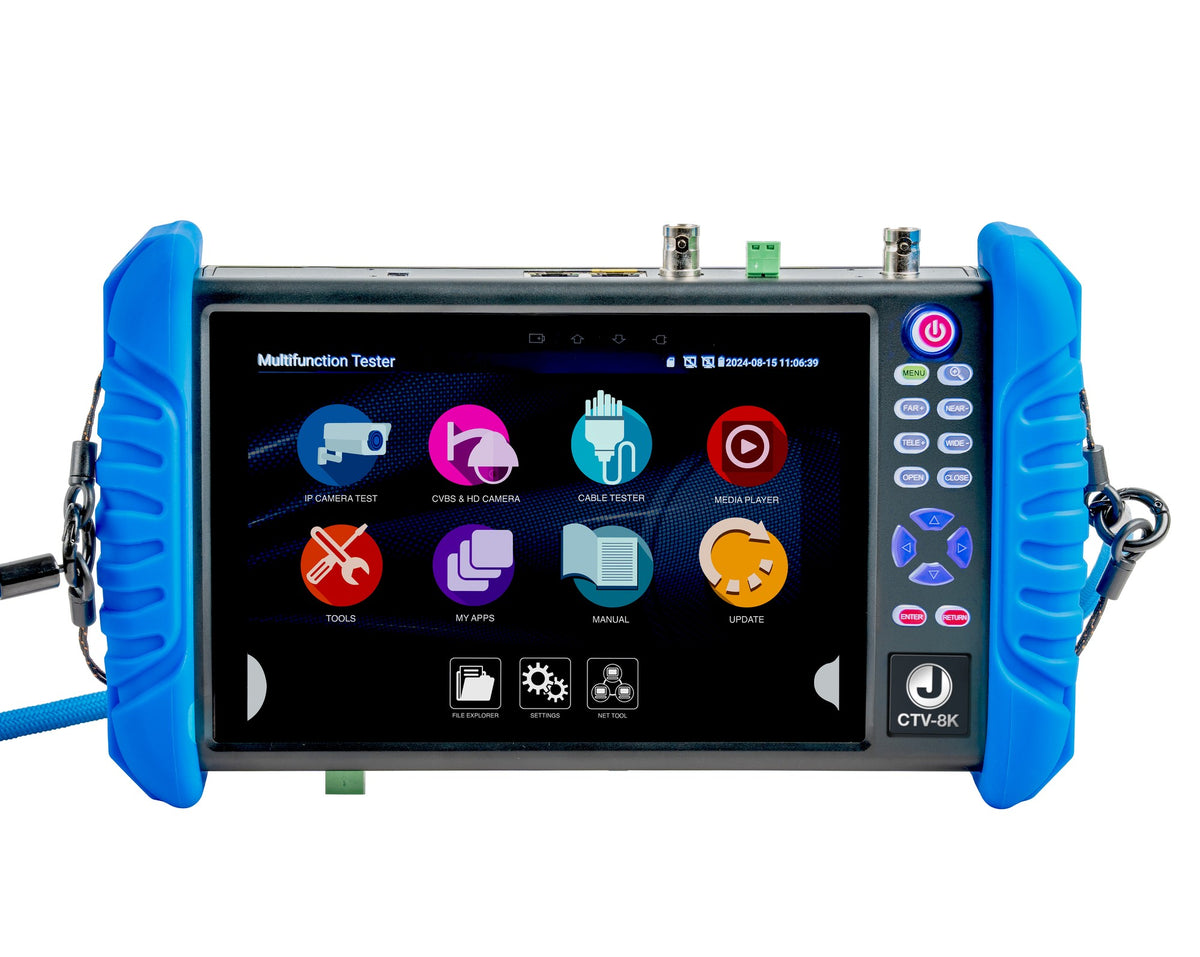

The Jonard Tools CTV-8K is a multifunctional 8K CCTV tester built on Android 11 with a 7-inch 1280x800 capacitive touchscreen. It tests IP, HD coaxial (TVI/CVI/AHD), and analog cameras, supports 8K H.265 IP camera streams, and provides 4K HDMI input and output. A built-in PoE++ output delivers up to 90 W to power cameras, and the unit adds dual Gigabit RJ45 LAN ports, Wi-Fi, RS485 PTZ control, ONVIF/Dahua/Hikvision camera activation, and RJ45 cable/network diagnostics. Physical connectivity covers RJ45, BNC, and HDMI.

Brand
Jonard Tools
SKU / MPN
JONACTV-8K

Product Specifications

  • 7-inch 1280x800 capacitive touchscreen running Android 11
  • Tests IP, HD coaxial (CVI/TVI/AHD), and analog cameras
  • Supports 8K H.265 IP camera display and decoding
  • 4K HDMI input and output (up to 4K 60FPS)
  • PoE / PoE+ / PoE++ output up to 90 W to power connected cameras
  • Dual Gigabit RJ45 LAN ports; Wi-Fi (150 Mbps)
  • RS485 PTZ control; ONVIF, Dahua, and Hikvision camera activation
  • RJ45 TDR cable tester with range up to 3 km; network diagnostics
  • Rechargeable 11.1V lithium-polymer battery pack
  • Dimensions 240 x 154 x 46 mm (9.45 x 6.06 x 1.81 in); UPC 810132438028; included: tester, soft carrying case, adapters, cables, shoulder strap, power supply
