Jonard Tools FLC-1008 Singlemode Fiber Optic Launch Cable, 1000 M (3,281 FT), SC/UPC to LC/APC
Singlemode OTDR launch cable with 1000 M (3,281 FT) of G657A2 fiber terminated SC/UPC to LC/APC in a magnet-base housing that removes the OTDR dead zone.
Damaged or lost in transit? Let us know within 7 days.
Product details

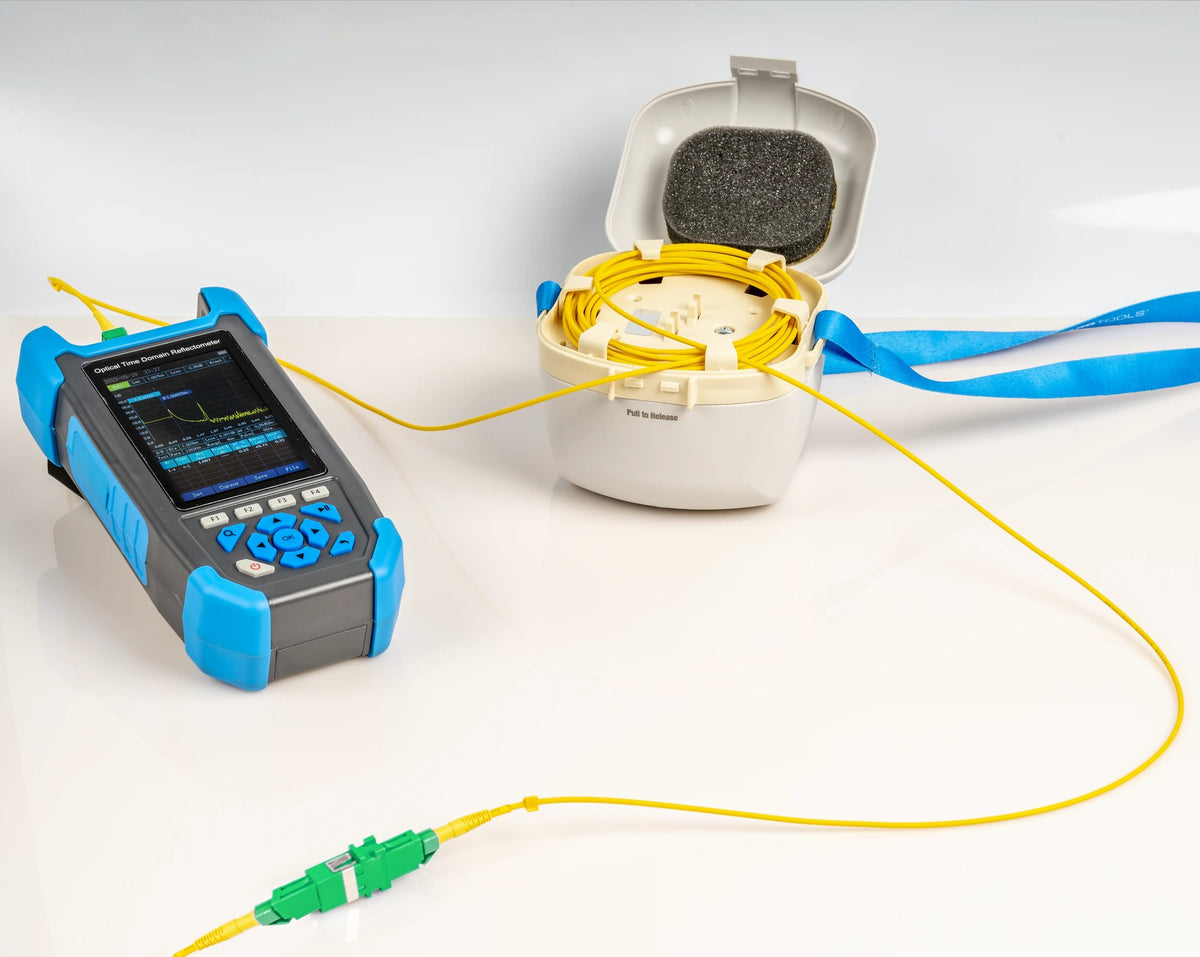

The Jonard Tools FLC-1008 is a singlemode OTDR launch cable with 1000 M (3,281 FT) of G657A2 fiber wound inside a compact housing. Connected between the OTDR and the link under test, it eliminates the dead zone in reflectometric tests.

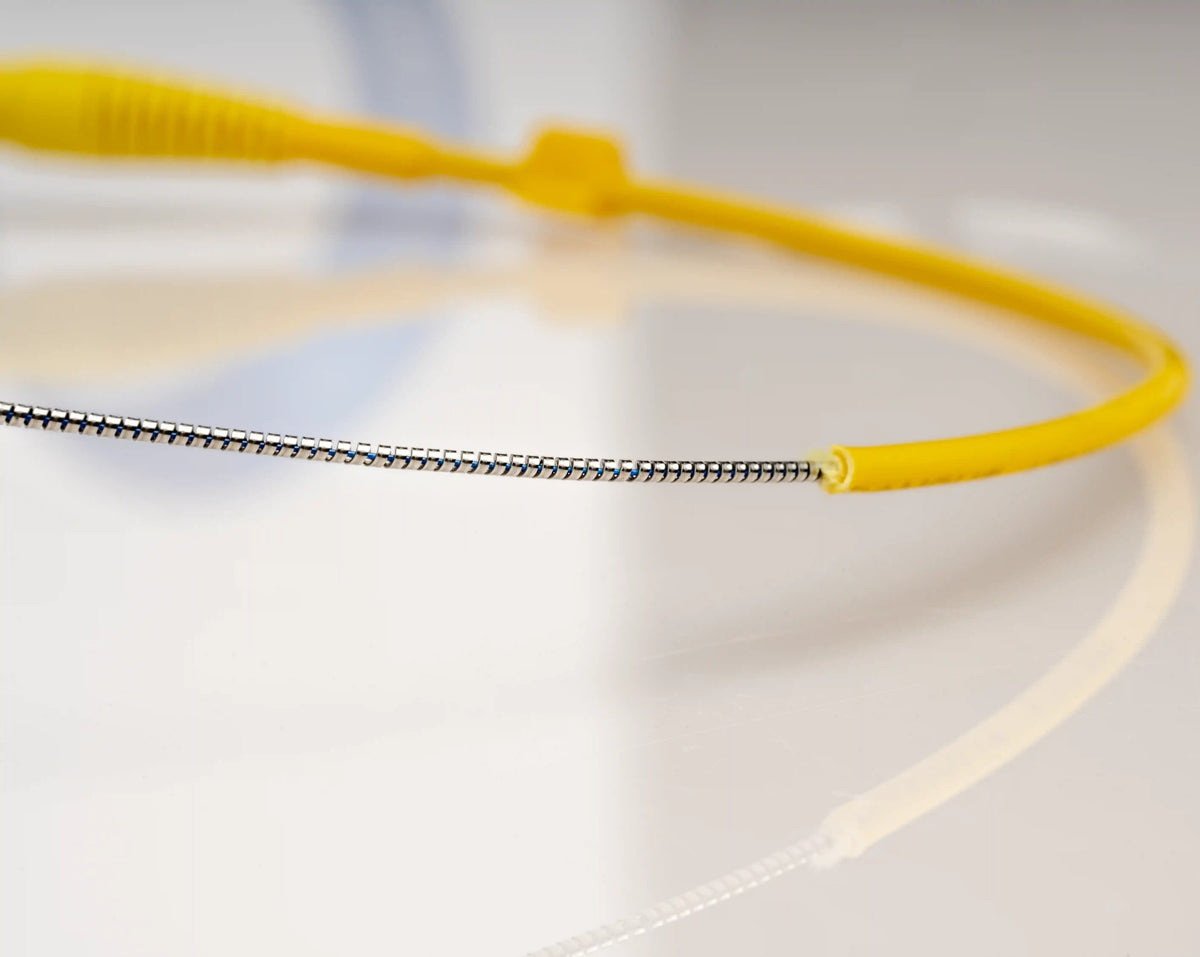

The pigtails are terminated SC/UPC on one end and LC/APC on the other, with color-coded polish types for quick identification. A magnet on the base mounts the housing to fiber racks and a shoulder strap carries it between jobs. Max attenuation is 0.35 dB/km at 1310 nm and 0.22 dB/km at 1550 nm; connector insertion loss is 0.1 dB max with return loss of 65 dB or better.
- Brand
- Jonard Tools
- SKU / MPN
- JONAFLC-1008
Product Specifications
- Sold as: 1 launch cable, 1000 M (3,281 FT) of fiber in a compact housing
- Fiber type: G657A2 singlemode
- Connectors: SC/UPC on one end, LC/APC on the other; polish types color coded for quick identification
- Max attenuation 0.35 dB/km at 1310 nm and 0.22 dB/km at 1550 nm
- Connector insertion loss 0.1 dB max; return loss 65 dB min
- Eliminates dead zones in OTDR reflectometric tests

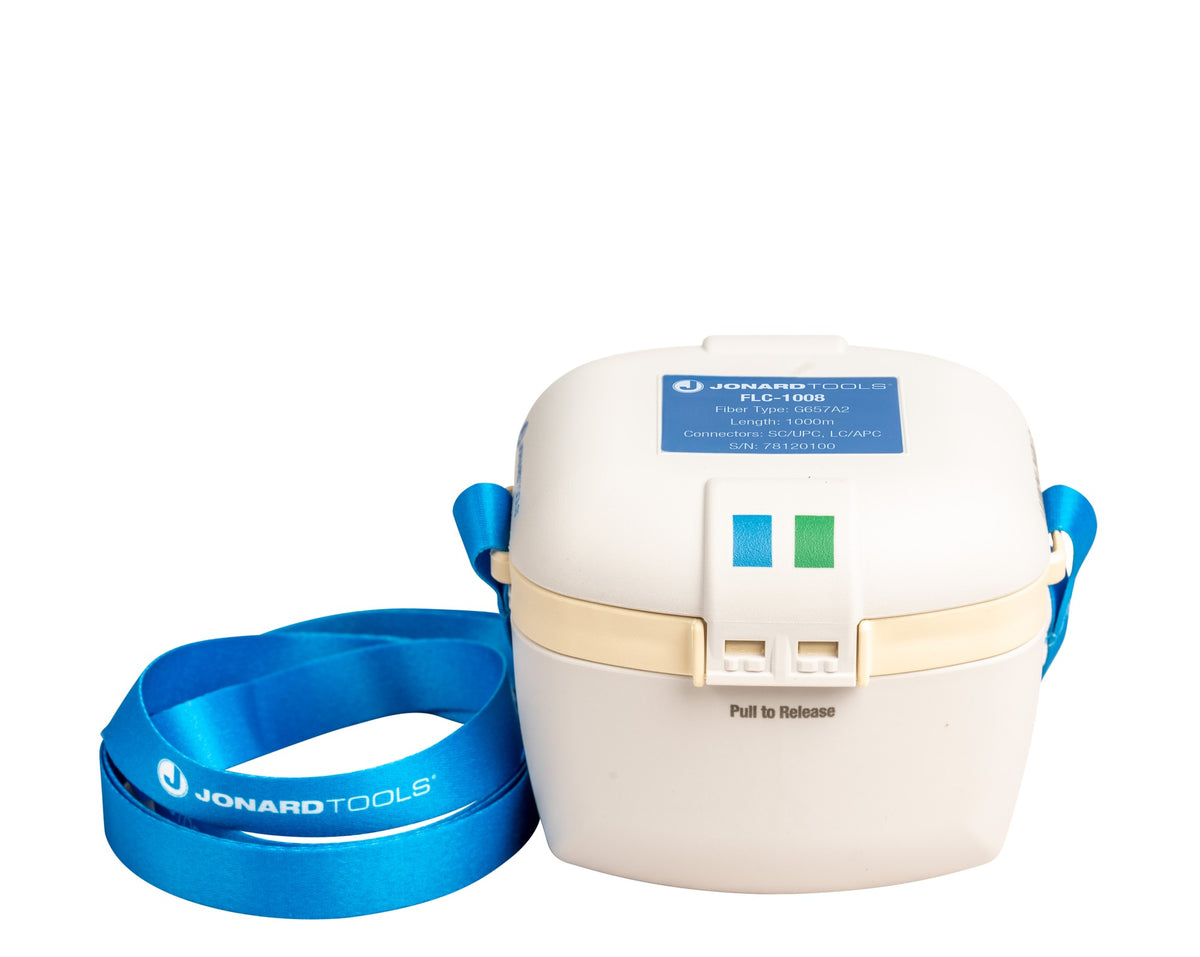

- Compact housing with shoulder strap for on-the-go use

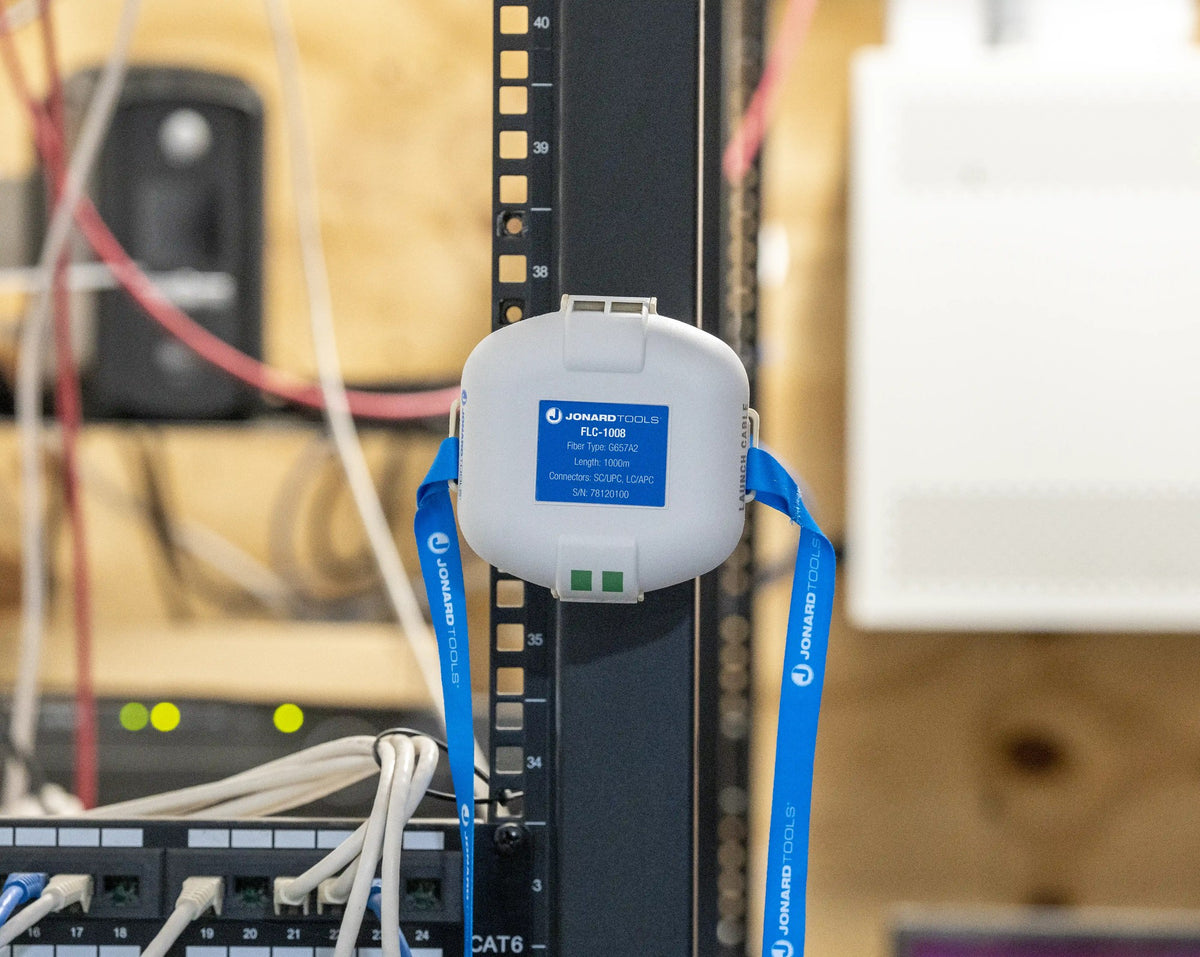

- Magnet on the bottom of the housing for mounting to fiber racks
- Dimensions 4 IN x 4 IN x 3 IN; weight 0.62 lb (281.48 g)
- Country of origin: Poland
