Jonard Tools FPL-5555 Fiber Power Meter & SM/MM Light Source Kit with Data Storage
Fiber test kit pairing the FPM-55 power meter, which stores 1,000 readings from 800 to 1650 nm, with the FLS-55 SM/MM light source in an H-22 case.
Damaged or lost in transit? Let us know within 7 days.
Product details

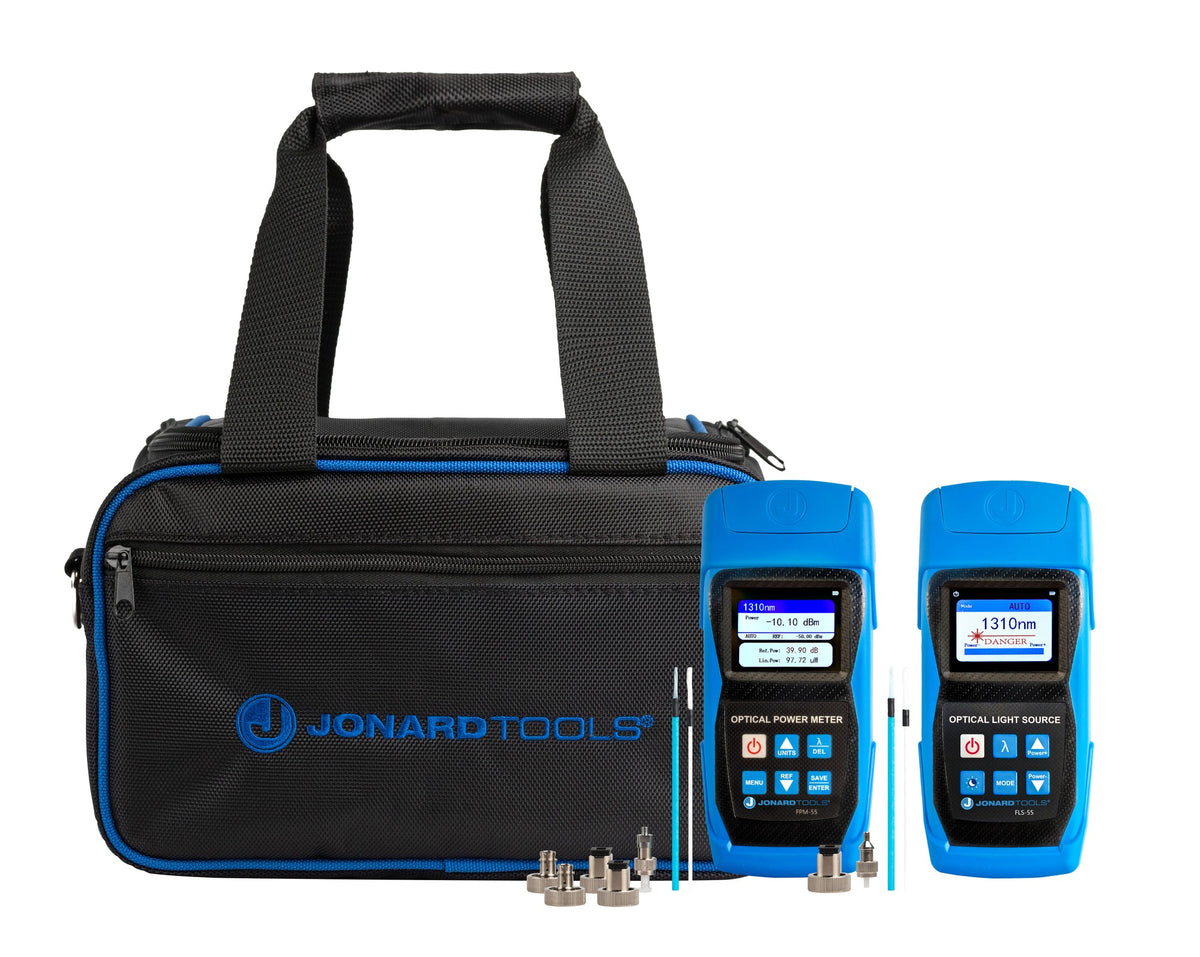

The Jonard Tools FPL-5555 is a fiber optic test kit that pairs the FPM-55 power meter with the FLS-55 SM/MM optical light source. The FPM-55 measures wavelengths from 800 to 1650 nm at 0.01 dB resolution across six preset calibrated wavelengths, determines absolute or relative power, and stores up to 1,000 readings that download via USB. The FLS-55 light source outputs stable 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths with four modulation modes. Both instruments ship with FC, SC, and LC adapters in an H-22 rugged carrying case.
- Brand
- Jonard Tools
- SKU / MPN
- JONAFPL-5555
Product Specifications
- Kit pairs the FPM-55 fiber optic power meter with the FLS-55 SM/MM light source
- FPM-55 measures wavelengths 800-1650 nm at 0.01 dB resolution
- Six preset calibrated wavelengths; measures absolute or relative power
- FPM-55 stores up to 1,000 data entries, downloadable via USB
- FPM-55 adapters: FC/SC for APC/PC/UPC, LC for PC/UPC only
- FLS-55 outputs 850/1300 nm (multimode) and 1310/1550 nm (singlemode) with four modulation modes (CW, 270 Hz, 1 kHz, 2 kHz)
- FLS-55 adapters: FC, SC, and LC for PC/UPC connectors
- Kit dimensions 11.13 in x 9.13 in x 6.63 in; weight 4.22 lb; UPC 810053352083
- Included: FPM-55 meter, FLS-55 source, H-22 rugged carrying case, nylon meter case, source storage pouch, adapters, 3 AA batteries per device, 2 cleaning swabs per device, instruction manuals
