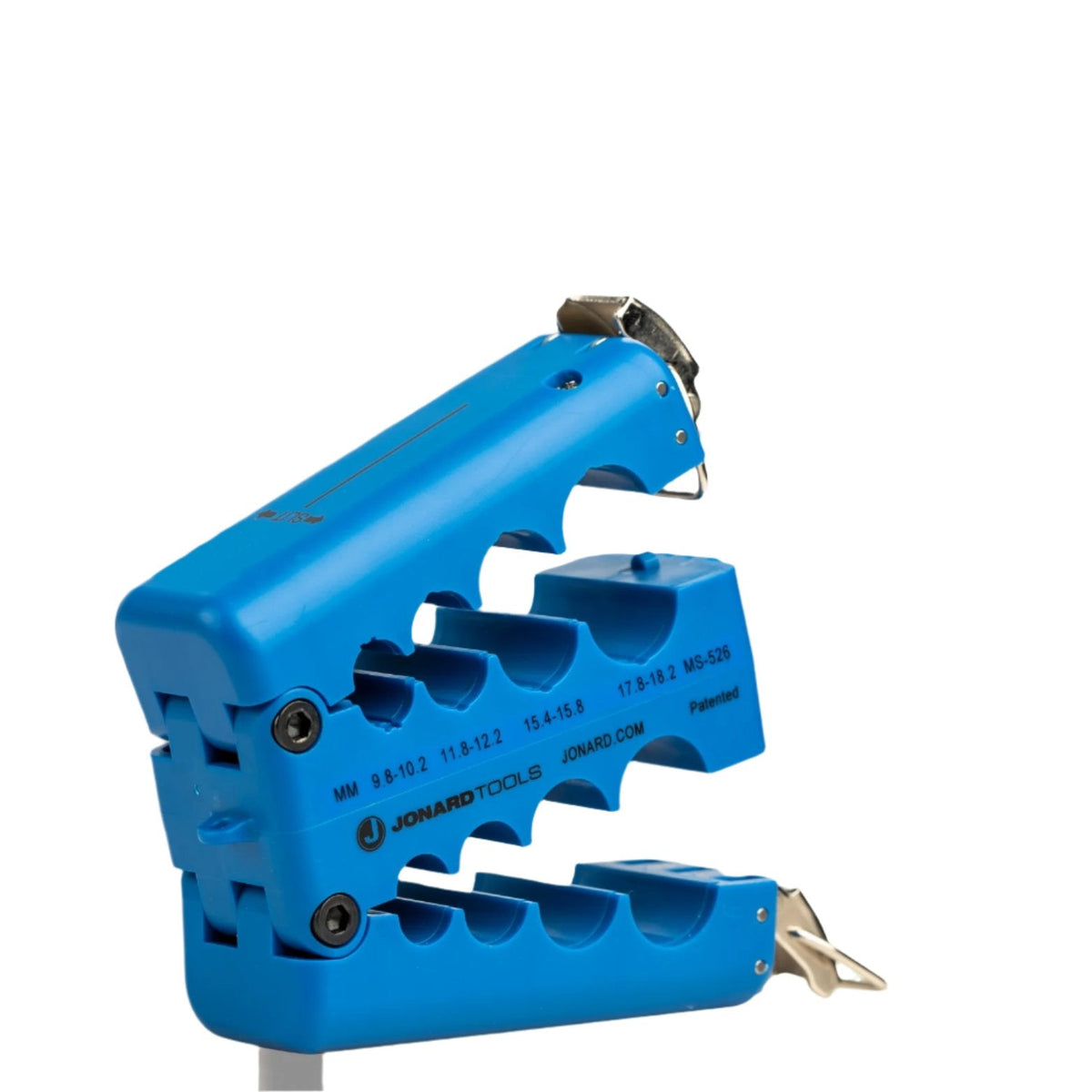

Jonard Tools MS-526 Mid Span Slit & Ring Tool (9.8-18.2 mm)
Jonard Tools MS-526 mid span slit and ring tool covering 9.8 to 18.2 mm thin-wall jackets, designed for Corning ALTOS loose-tube FastAccess cable.
$187.95Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details
The patented, award-winning Jonard Tools MS-526 Mid Span Slit & Ring Tool provides quick, safe access to optical fibers in Corning ALTOS loose-tube cable with binderless FastAccess technology, as well as other thin-walled jackets from 9.8 mm to 18.2 mm in diameter. It combines slitting and ringing blades to remove the thin-wall jacket without damaging the buffer tubes inside, with directional markings for pulling and rotation.
- Brand
- Jonard Tools
- SKU / MPN
- JONAMS-526
Product Specifications
- Cable diameter range: 9.8 mm to 18.2 mm thin-wall jackets
- Both slitting and ringing blades; 4 precision slitting grooves and 4 ring grooves
- Grooves marked with cable size (9.8-10.2 / 11.8-12.2 / 15.4-15.8 / 17.8-18.2 mm)
- Removes thin-wall jacket without damaging interior buffer tubes
- Dimensions: 3.58 IN (91 mm) x 1.53 IN (39 mm) x 3.37 IN (86 mm)
- Weight: 0.61 lb (0.277 kg)
- Each blade good for up to 5,000 slits/cuts; replacement blade set MS-526RB
- Directional arrows indicate pulling direction and rotation; line indicates blade location
