Jonard Tools OFI-50 Optical Fiber Identifier, 800-1700 nm, 270 Hz/1 kHz/2 kHz Tone Detect
One-key live-fiber identifier that shows signal direction and relative core power across 800 to 1700 nm and detects 270 Hz, 1 kHz and 2 kHz tones.
Damaged or lost in transit? Let us know within 7 days.
Product details

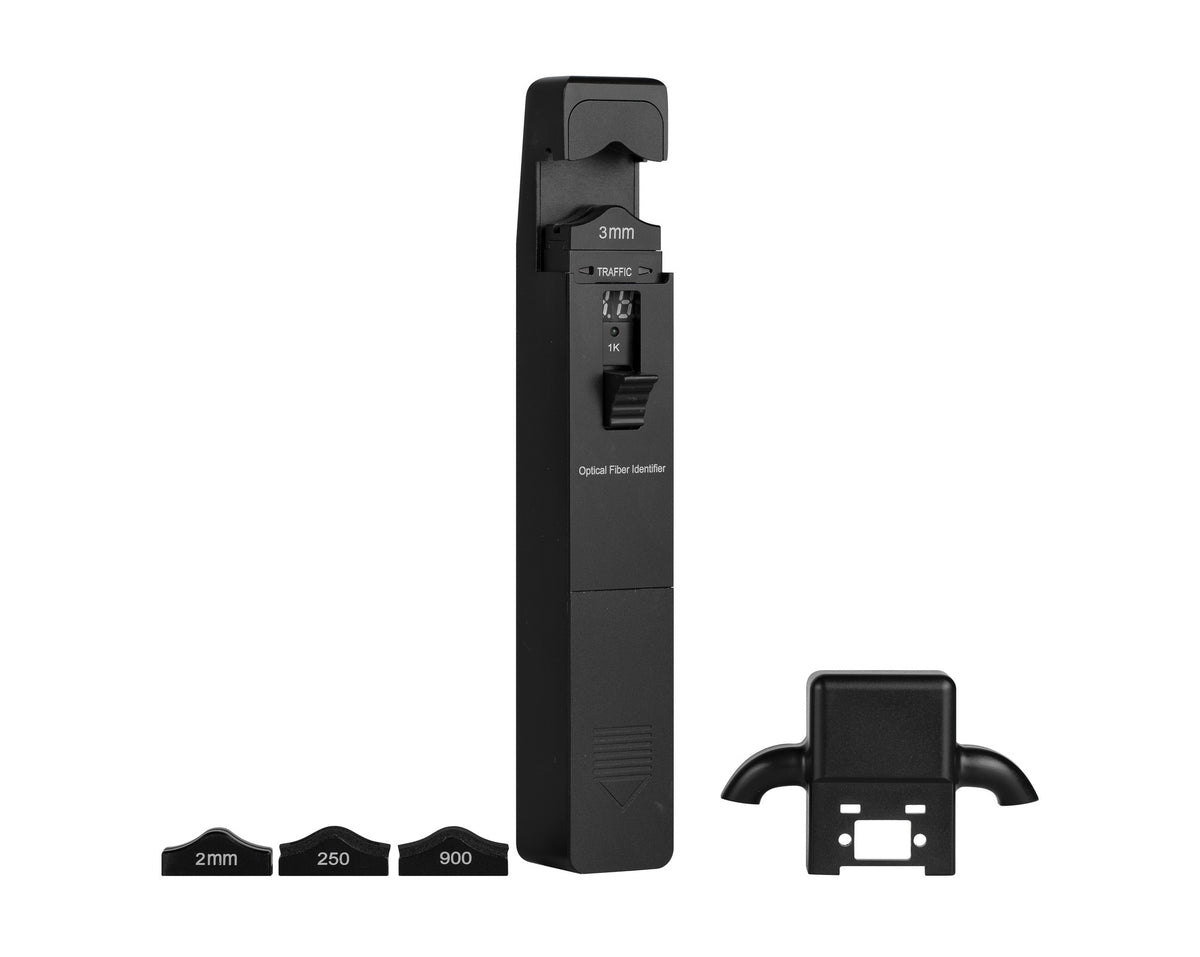

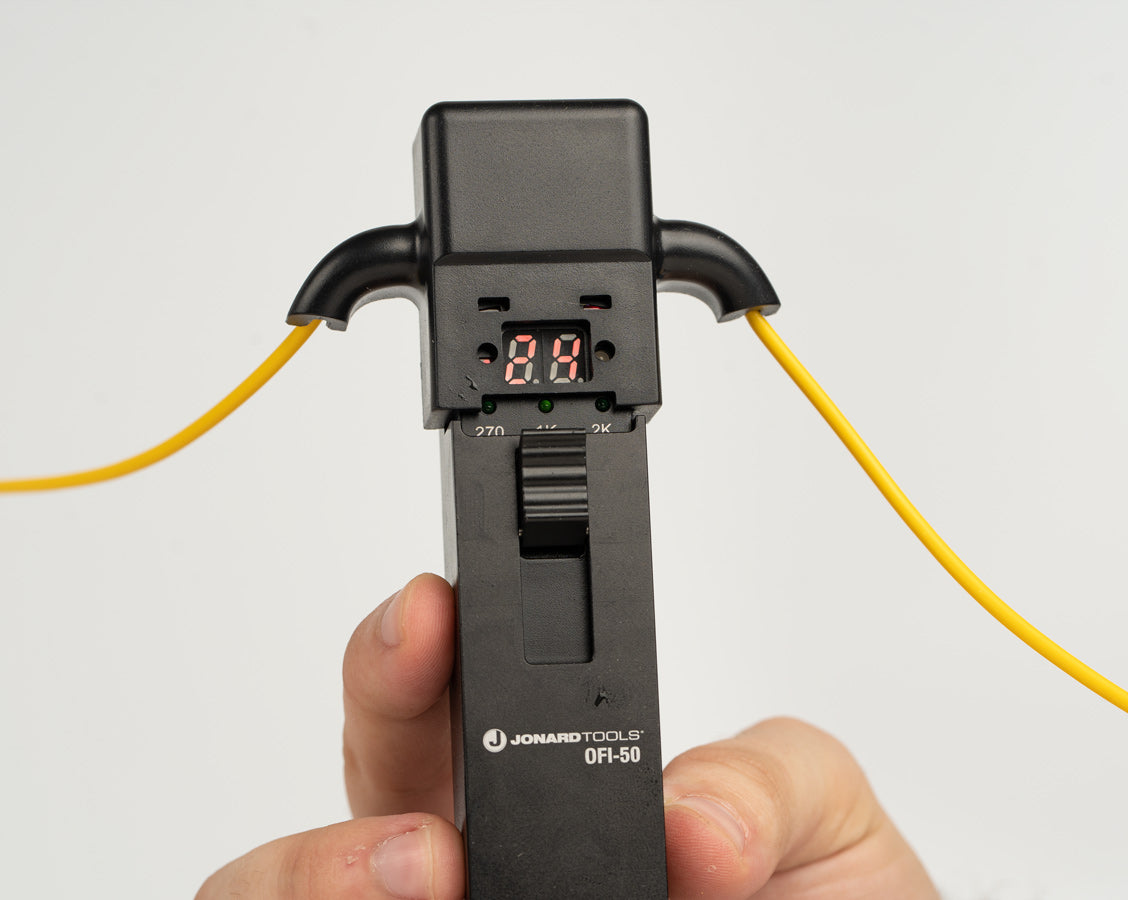

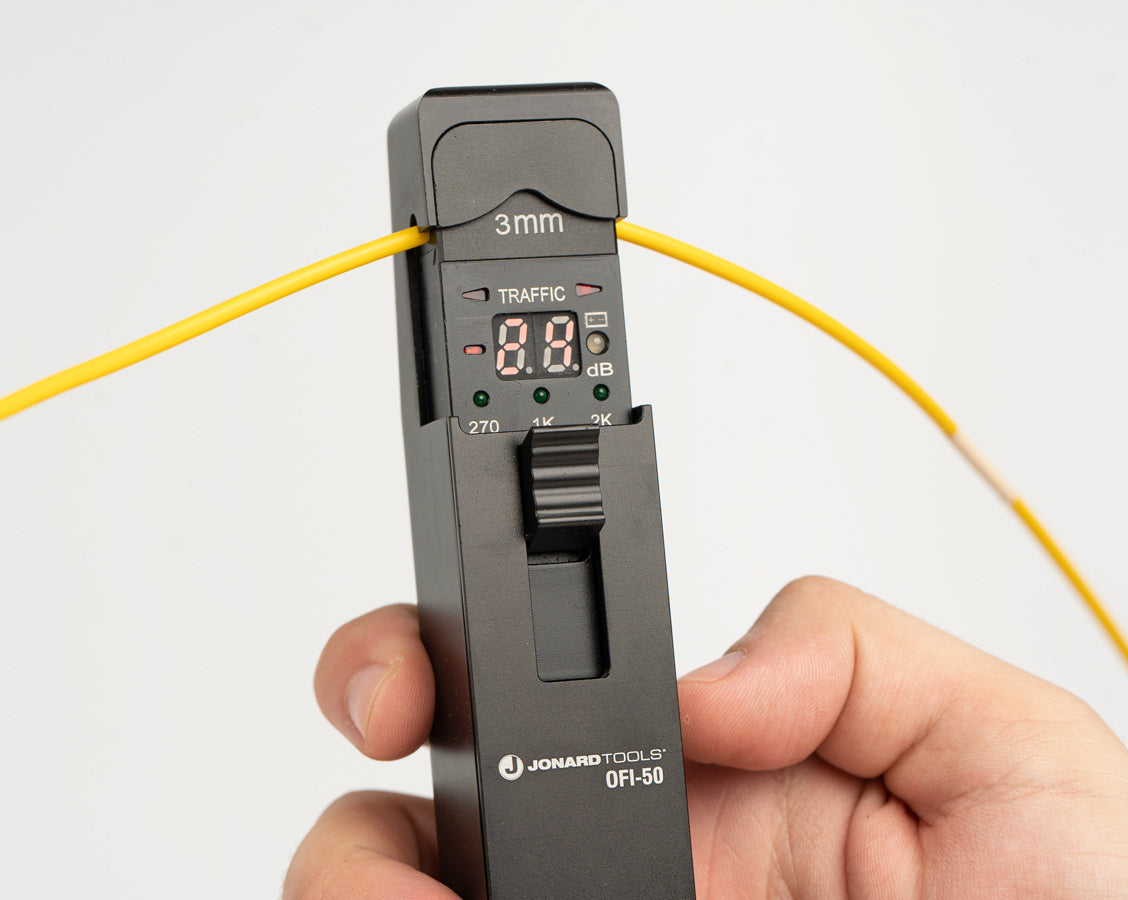

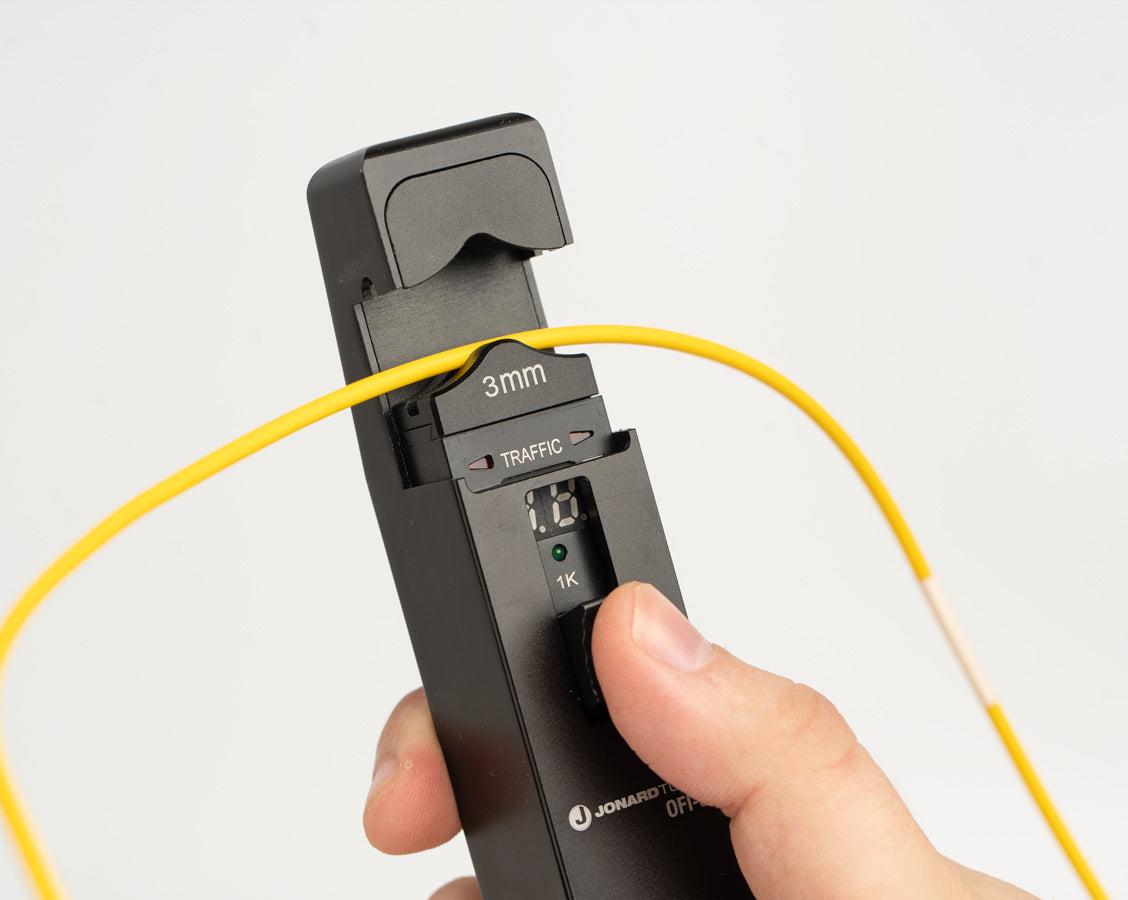

The Jonard Tools OFI-50 Optical Fiber Identifier is a compact, one-key tool for identifying the direction of transmitted signal in a live fiber and displaying relative core power without disrupting the network. It detects modulated tones at 270 Hz, 1 kHz, and 2 kHz with an audible warning and covers an 800-1700 nm identification range using dual 1 mm InGaAs detectors. The metal-housed unit ships with 0.25 mm, 0.9 mm, 2.0 mm, and 3.0 mm adapters, a sunshade, a 9 V battery, and a carrying pouch.
- Brand
- Jonard Tools
- SKU / MPN
- JONAOFI-50
Product Specifications
- Identifies transmission direction and relative core power in live fiber without service interruption
- Identified wavelength range: 800-1700 nm
- Tone detection: CW, 270 Hz, 1 kHz, and 2 kHz (audible warning)
- Signal direction test range: -46 to +10 dBm at 1310 nm; -50 to +10 dBm at 1550 nm
- Insertion loss: 0.8 dB at 1310 nm and 2.5 dB at 1550 nm
- Dual 1 mm InGaAs detectors, one-key operation, LED battery indicator, and durable metal housing

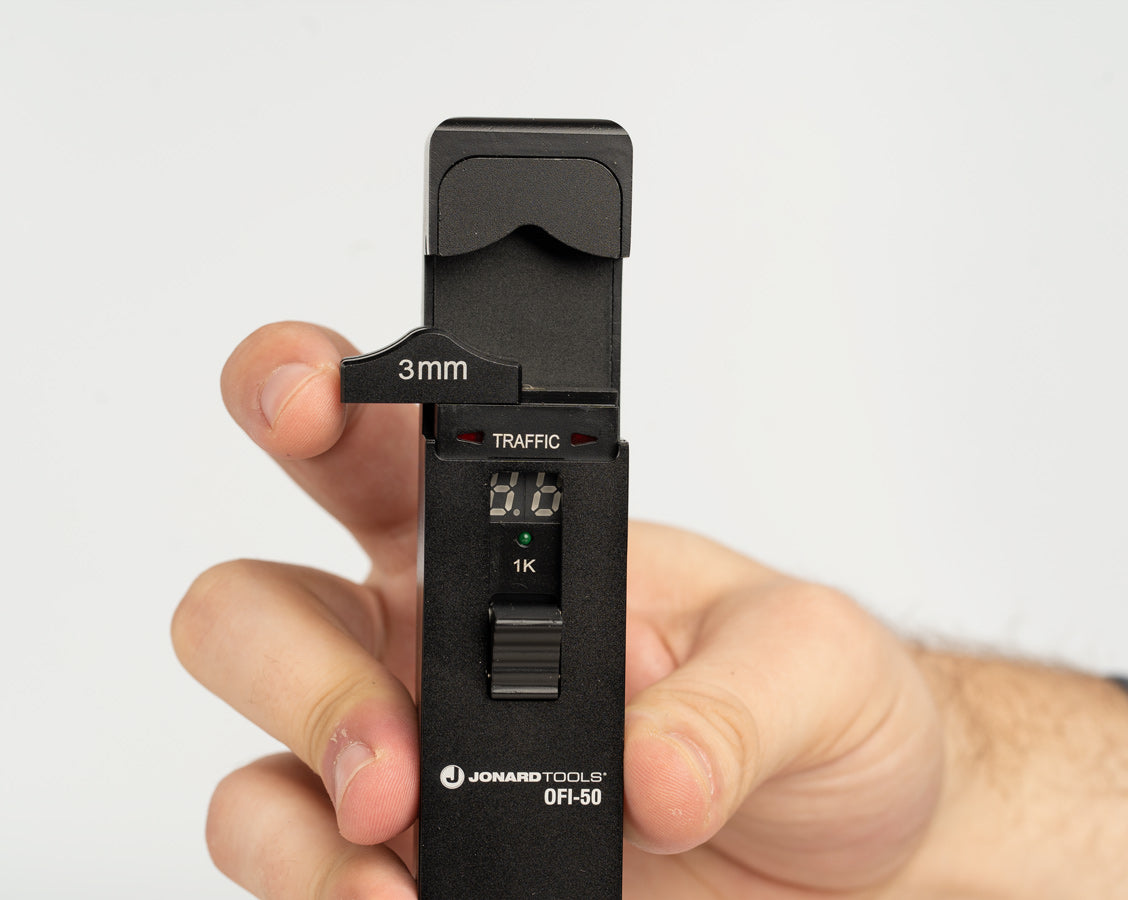

- Included adapters: 0.25 mm (bare fiber), 0.9 mm, 2.0 mm, and 3.0 mm
- Powered by a 9 V battery
- What is included: identifier, four adapters, sunshade, 9 V battery, and carrying pouch
- Dimensions: 7.72 x 1.20 x 1.06 in (196 x 30.5 x 27 mm); weight 0.44 lb (200 g)
