Jonard Tools OTDR-1100 Multi-Function Touchscreen OTDR, 1310/1550 nm, 28/26 dB
Multi-function 1310/1550 nm OTDR with a 28/26 dB dynamic range, a 4.3 IN color touchscreen and a built-in downstream XGPON power meter for FTTx work.
Damaged or lost in transit? Let us know within 7 days.
Product details

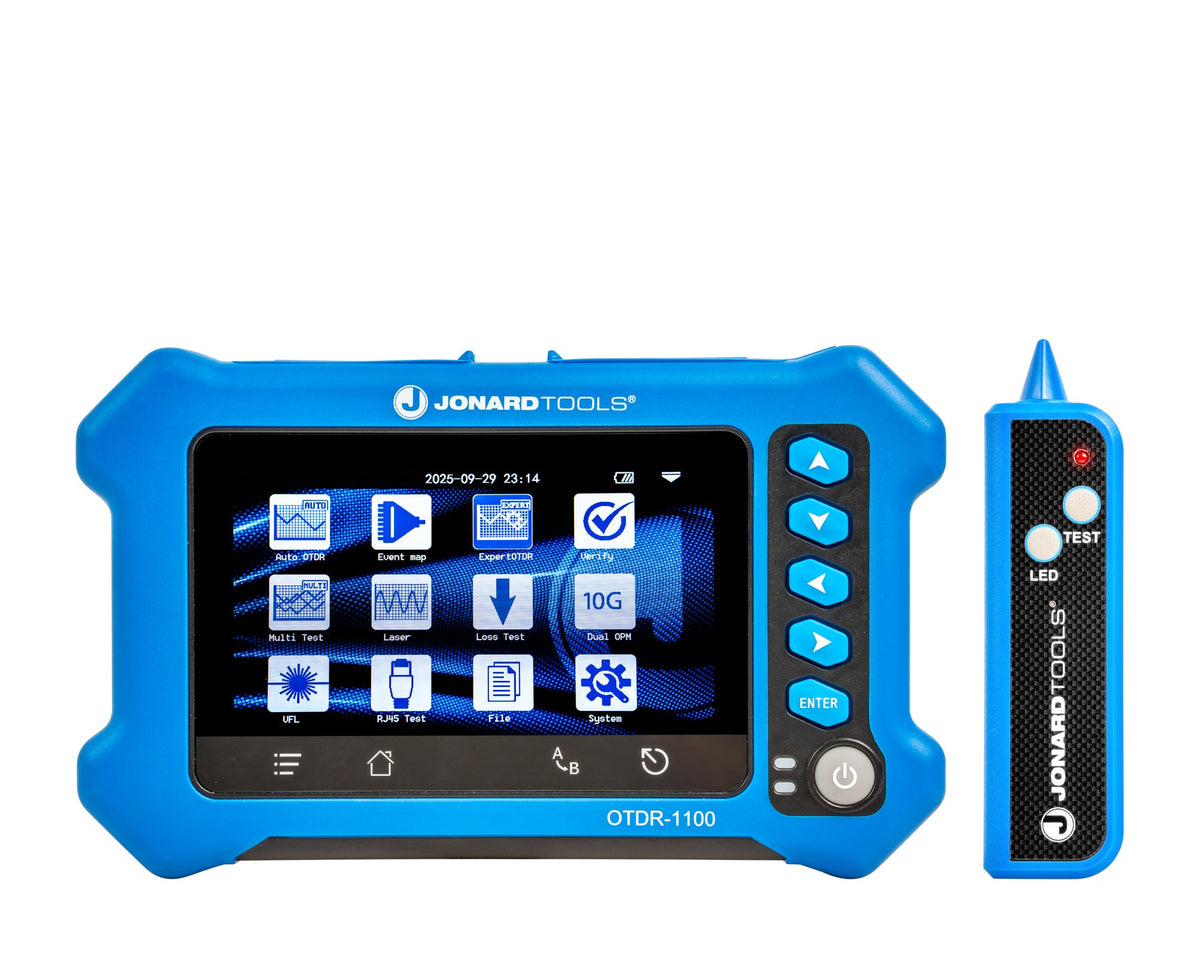

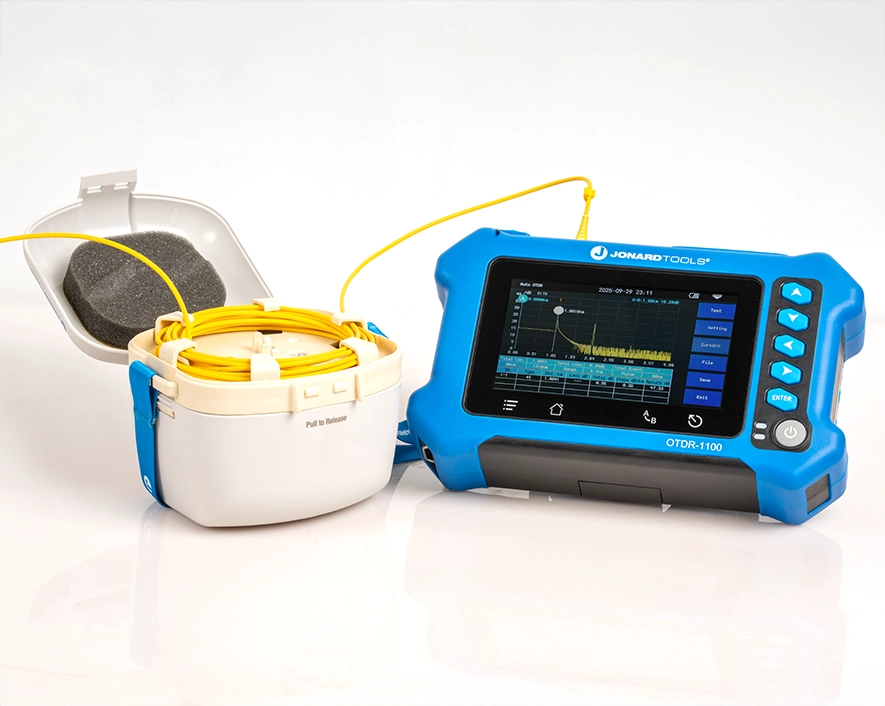

The Jonard Tools OTDR-1100 is a multi-function touchscreen OTDR for FTTx and access-network construction and maintenance at 1310/1550 nm with a 28/26 dB dynamic range. It packs 10 fiber test functions (Auto OTDR, Expert OTDR, Event Map, ONU verification, multicore test up to 256 fibers, downstream XGPON power meter, light source, power meter, VFL and microscope module) plus RJ45 sequence, cable length and cable tracing for network cables, all driven from a 4.3 in color LCD touchscreen. The built-in downstream XGPON meter reads 1490 nm and 1577 nm simultaneously. It sits between the OTDR-1000 and the professional OTDR-1500 in Jonard's multi-function OTDR line.
- Brand
- Jonard Tools
- SKU / MPN
- JONAOTDR-1100
Product Specifications
- Multi-function touchscreen OTDR for FTTx and access-network construction and maintenance
- Wavelengths: 1310/1550 nm (plus or minus 20 nm); dynamic range 28 dB (1310) / 26 dB (1550)
- 10 fiber test functions: Auto OTDR, Expert OTDR, Event Map, ONU verification, multicore test (up to 256 fibers), downstream XGPON power meter, light source, power meter, VFL, microscope module
- 3 network cable functions: RJ45 sequence, cable length, cable tracing
- Built-in downstream XGPON meter tests 1490 nm and 1577 nm simultaneously
- Test range 5 m to 80 km; pulse width 5 ns to 10 microseconds; event dead zone 3 m, attenuation dead zone 8 m

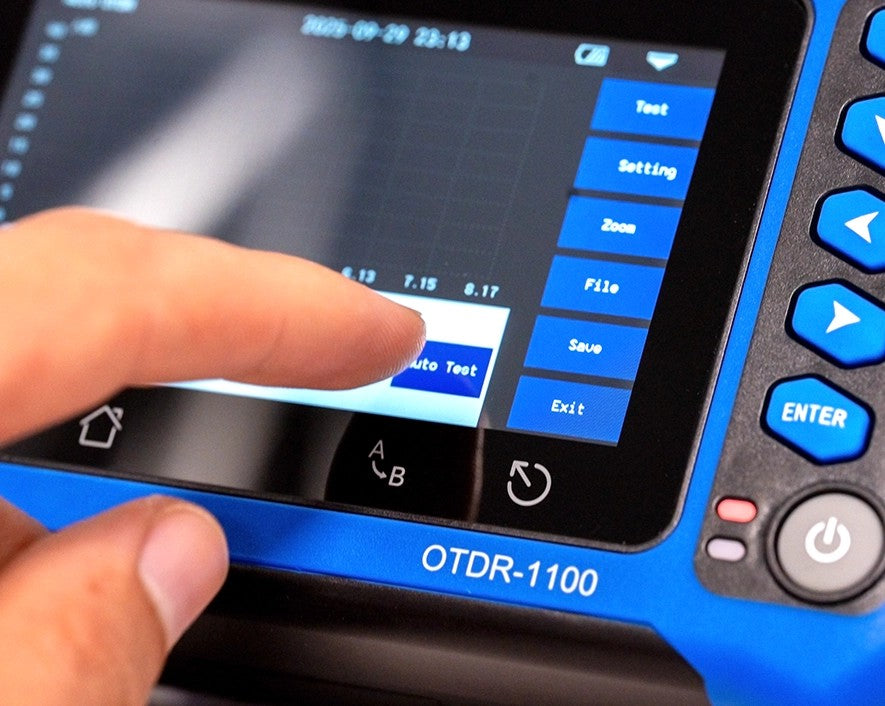

- 4.3 in color LCD touchscreen; built-in Event Map shows faults graphically
- Storage: over 600 entries internal plus MicroSD/TF card slot; SOR standard file format
- Included OTDR connectors: FC, SC, LC (APC); Class IIIA laser

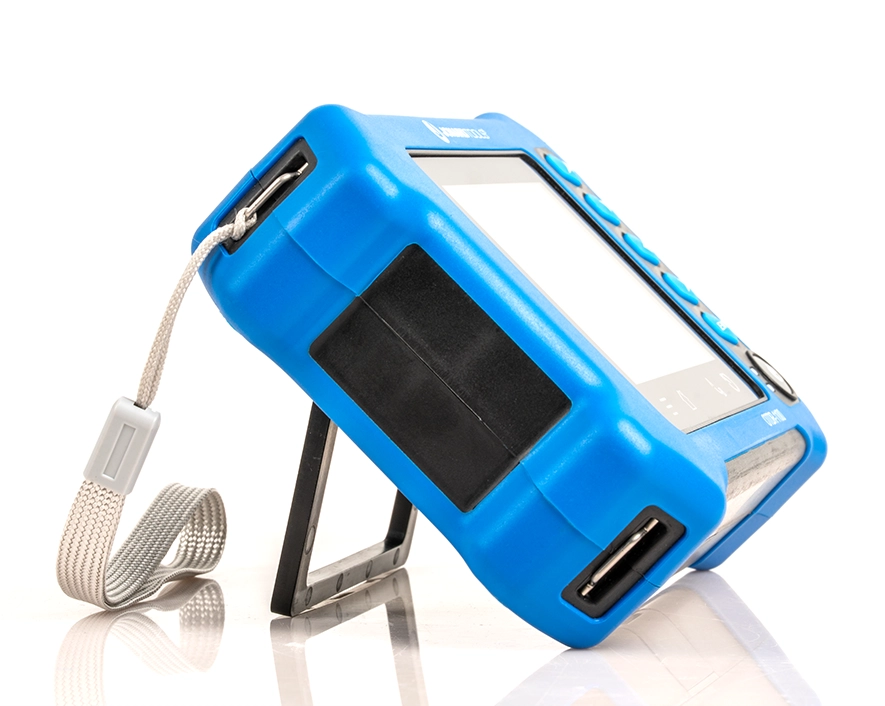

- Rechargeable lithium-ion battery; charges and transfers data over the included micro-USB cable; kickstand; protective carrying case
- Rubberized shock-proof, drop-proof hard case; 10.5 x 8 x 2.63 in; 2.37 lb
- Positioned above the 3.5 in non-touch OTDR-1000 (24/22 dB) and below the 7 in touchscreen OTDR-1500 (32/30 dB)
