Jonard Tools OTDR-1500 Professional Multi-Function OTDR, 1310/1550 nm, 32/30 dB, 7 in Touch
Professional 1310/1550 nm OTDR with a 32/30 dB dynamic range, 0.5 m dead zones, a 7 IN color touchscreen and built-in light source, power meter and VFL.
Damaged or lost in transit? Let us know within 7 days.
Product details
The Jonard Tools OTDR-1500 is a professional multi-function OTDR built for FTTx and access network construction, maintenance, and troubleshooting. It tests at 1310/1550 nm with a 32/30 dB dynamic range over a 500 m to 80 km range and delivers 0.5 m event and attenuation dead zones. A large 7 in color LCD touchscreen drives five modules - OTDR, light source, power meter, visual fault locator, and help - with 200 MB internal storage plus MicroSD and onboard Wi-Fi. The rubberized, shock- and drop-proof unit runs on a rechargeable lithium-ion battery and ships with FC/APC and SC/APC adapters, an LC/UPC power-meter adapter, and a calibration certificate.
- Brand
- Jonard Tools
- SKU / MPN
- JONAOTDR-1500
Product Specifications
- Professional multi-function OTDR with five modules: OTDR, light source, power meter, visual fault locator, and help
- Wavelengths: 1310 +/-20 nm and 1550 +/-20 nm; dynamic range 32 dB (1310) / 30 dB (1550)
- Test range 500 m to 80 km; event and attenuation blind zones of 0.5 m

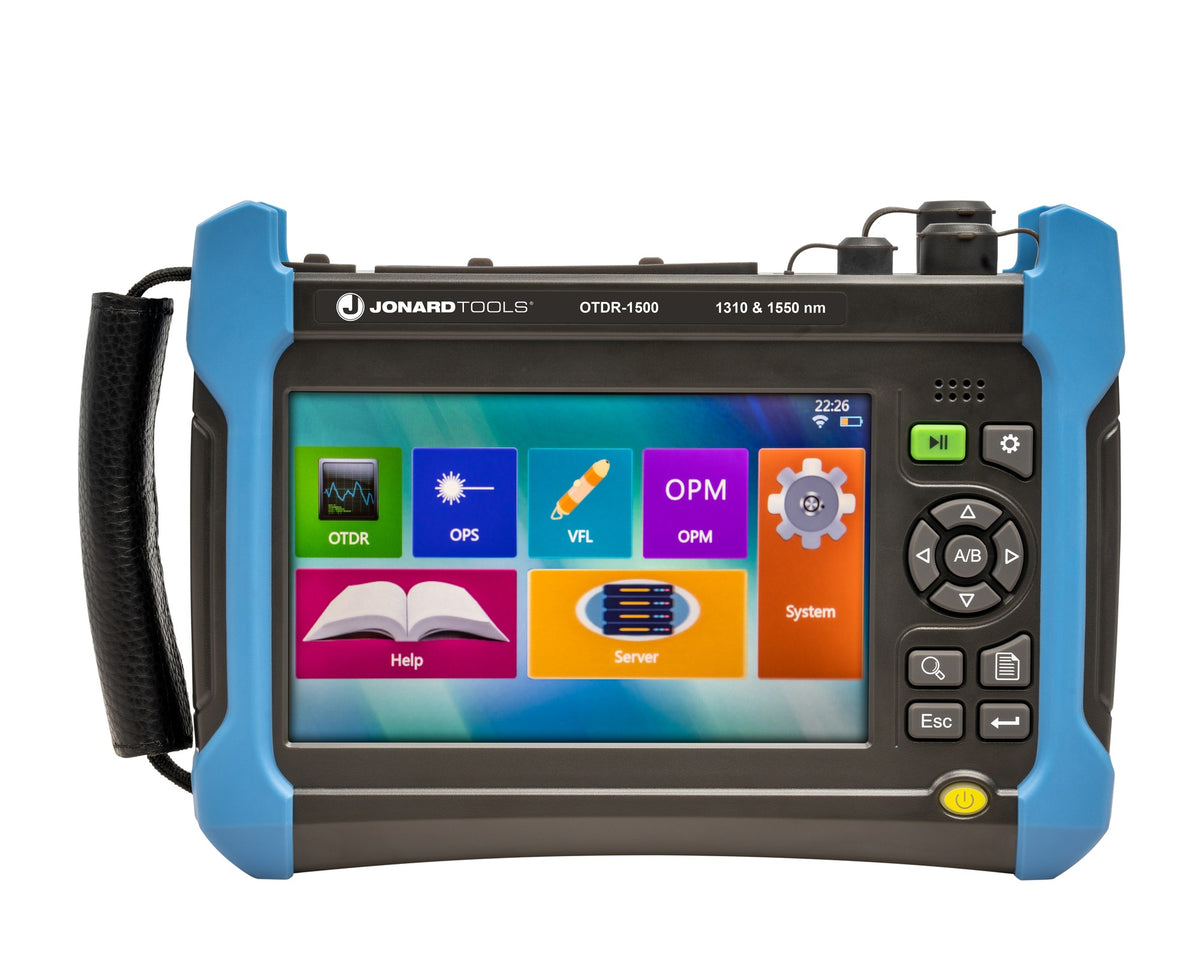

- 7 in color LCD touchscreen; SOR standard file format
- 200 MB internal storage plus MicroSD/TF card slot; onboard Wi-Fi connectivity
- Built-in rechargeable lithium-ion battery; rugged shock- and drop-proof case

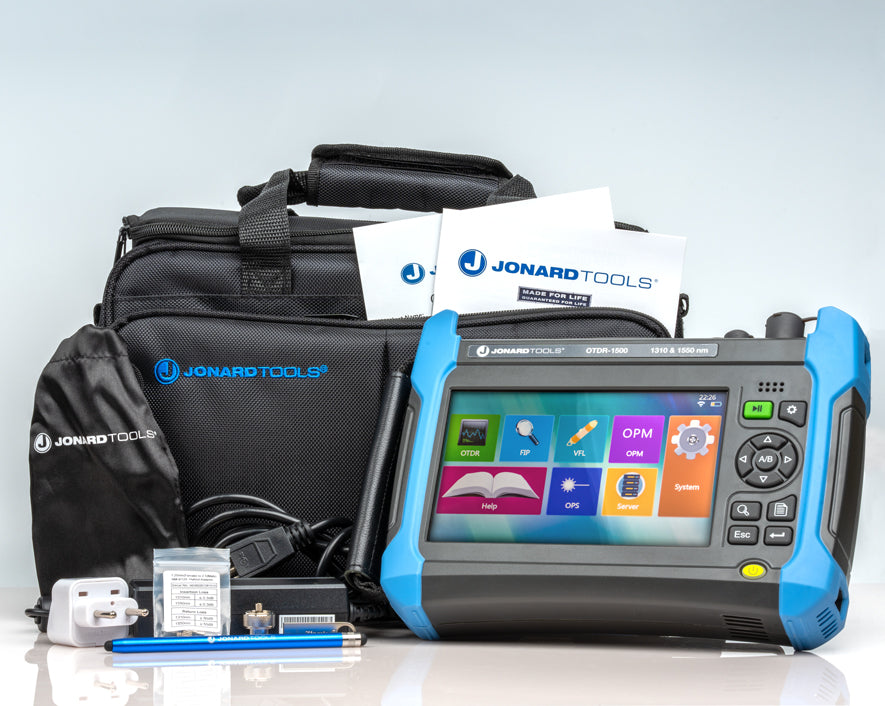

- Included: FC/APC and SC/APC OTDR adapters, LC/UPC adapter for the power meter, micro-USB cable, power adapter, calibration certificate, protective carrying case with strap, instruction manual, and downloadable software
- Dimensions: 13 x 4.5 x 9.5 in; weight 6.31 lb (2.87 kg)
