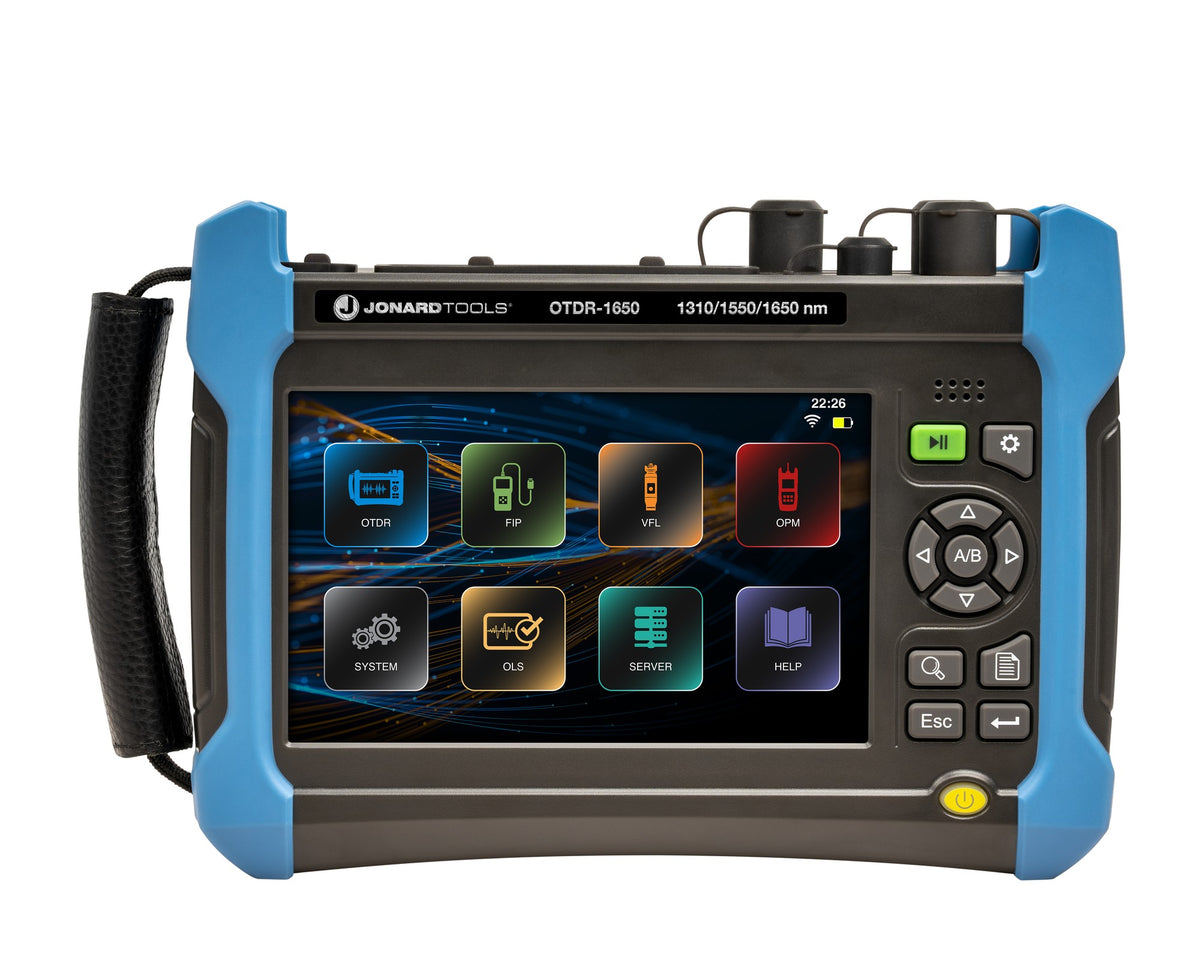

Jonard Tools OTDR-1650 Professional Multi-Function OTDR, 1310/1550/1650 nm, 36 dB, 7 in Touchscreen
Professional 1310/1550/1650 nm OTDR with 36 dB dynamic range and a 7 IN touchscreen whose 1650 nm out-of-band wavelength tests live PON fibers in service.
Damaged or lost in transit? Let us know within 7 days.
Product details

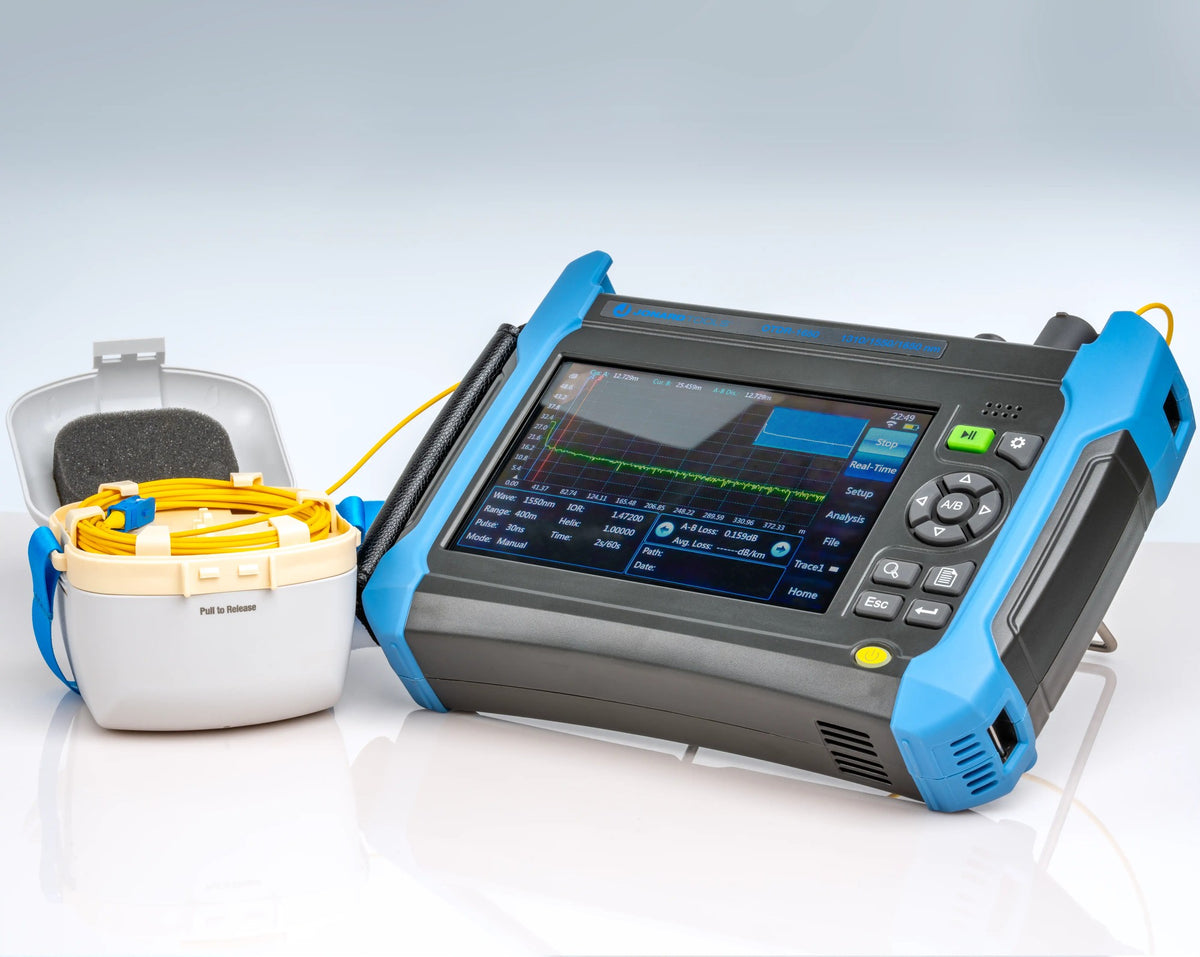

The Jonard Tools OTDR-1650 is a professional multi-function OTDR that tests at 1310, 1550 and 1650 nm with a 36/36/36 dB dynamic range. Its 1650 nm out-of-band wavelength, with 1260 to 1580 nm filtering, lets you test live EPON, GPON, BPON and XGSPON fibers without taking them out of service. Five modules cover OTDR, 1310/1550/1650 nm light source, power meter, visual fault locator and help, and a large 7 in color touchscreen shows both 1310 and 1550 nm traces at once with a built-in Event Map. Half-meter event and attenuation dead zones, a 500 m to 100 km range and 256k sampling points make it the top of Jonard's multi-function OTDR line.
- Brand
- Jonard Tools
- SKU / MPN
- JONAOTDR-1650
Product Specifications
- Professional multi-function OTDR (optical time-domain reflectometer) for FTTx and access-network construction, maintenance and troubleshooting
- Wavelengths: 1310, 1550 and 1650 nm (plus or minus 20 nm); dynamic range 36/36/36 dB
- 1650 nm out-of-band wavelength with 1260 to 1580 nm filtering tests live EPON/GPON/BPON/XGSPON fibers
- 5 modules: OTDR, 1310/1550/1650 nm light source, power meter, visual fault locator, help
- Dual-wavelength testing shows 1310 and 1550 nm traces simultaneously; built-in Event Map
- Event dead zone 0.5 m; attenuation dead zone 0.5 m; test range 500 m to 100 km; pulse width 3 ns to 10 microseconds; 256k sampling points
- 7 in color LCD touchscreen with stylus
- Storage: 200 MB internal (up to 4,800 entries) plus MicroSD card slot; SOR standard file format; on-board Wi-Fi for data transfer and live viewing on Android
- Included OTDR connectors: FC, SC (APC); Class II laser
- Rechargeable lithium-ion battery; rubberized shock-proof, drop-proof hard case
- 13 x 4.8 x 9 in; 6.1 lb; UPC 810132438370
