Jonard Tools SPCO-2 SPARC FIRE Core Alignment Fusion Splicer Kit with FC-600 Cleaver in H-2002 Case
SPARC FIRE six-motor core alignment fusion splicer with 0.01 dB typical singlemode loss, sold as a kit with an FC-600 cleaver in an H-2002 case.
Damaged or lost in transit? Let us know within 7 days.
Product details

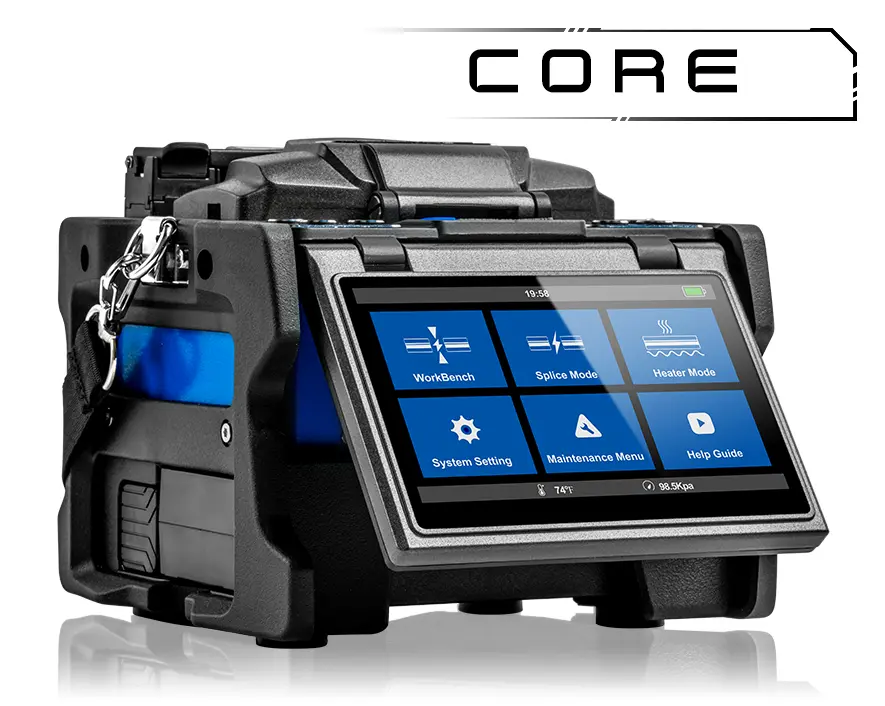

The Jonard Tools SPCO-2 SPARC® FIRE is a six-motor core alignment fusion splicer for single-fiber work on SM, MM, DS, NZDS and G.657 fiber. Core alignment holds typical singlemode splice loss to 0.01 dB, splices average 4 seconds in Quick mode and 5 seconds in SM mode, and sleeve heating averages 13 seconds.
The rugged metal chassis is water, dust and shock resistant. A full touch screen, German-engineered optics and a high-quality image sensor give a sharp fiber image, and a magnetic fiber holder carries fiber straight from cleaving to splicing. The 7000 mAh battery delivers up to 300 splicing-and-heating cycles per charge and recharges from AC or USB-C PD.
Sold as a complete kit: splicer, FC-600 cleaver, JIC-375 stripper, JIC-186 shears, spare electrodes, battery, AC adapter, cooling tray and cleaning supplies in the H-2002 carrying case.
- Brand
- Jonard Tools
- SKU / MPN
- JONASPCO-2
Product Specifications
- Core alignment fusion splicer, 6 motors, single-fiber
- Applicable fiber: SM, MM, DS, NZDS and G.657; typical splice loss SM 0.01 dB / MM 0.01 dB / DS 0.03 dB / NZDS 0.03 dB / G.657 0.01 dB
- Splice time: Quick mode avg. 4 sec / SM mode avg. 5 sec / Auto mode avg. 7 sec; up to 300 splice programs
- Heating time avg. 13 sec; fits 20 mm to 60 mm protection sleeves
- 7000 mAh battery, up to 300 splicing-and-heating cycles per charge; AC input 100 to 240 V 50/60 Hz or USB-C DC input 5 to 20 V (USB PD, 45 W max)
- Full touch screen display; x360 / x520 magnification with unlimited digital zoom; German-engineered optic lenses and high-quality image sensor
- Splice memory: 100,000 splice records / 10,000 images; USB data transfer cable included
- Rugged metal chassis, water, dust and shock resistant; sub-micron V-groove accuracy from diamond-wheel profile grinding
- Magnetic fiber holder carries fiber from cleaving to splicing; versatile holder switches between standard and loose-tube fiber
- Kit includes: FC-600 one-step fiber optic cleaver, JIC-375 three-hole fiber stripper, JIC-186 wire & Kevlar® shears, PSI-15 Quick Sleever®, FDC-66 fiber scrap can, CWP-125 pointed swabs, two FW-5 wet fiber wipe packs, FSP-E50 spare electrodes (pack of 2)
- Also in the case: FSP-B7000 battery pack, FSP-ADP-65JH AC adapter and power cable, FSP-SCT cooling tray, SOC holder and SOC heater holder, shoulder straps, fiber tray, set screws, soft and firm cleaning brushes, splicing and heater fiber holders (installed)
- H-2002 SPARC® carrying case; limited warranty (product registration at jonard.com)
- Splicer unit 5.79 x 6.18 x 5.39 IN (14.7 x 15.7 x 13.7 cm), 4.14 lb (1.88 kg); packaged kit approx. 19 x 12 x 8 IN, 11.6 lb
- UPC 810215350766
