Jonard Tools SPT-LCA3/12 LC/APC Singlemode Fiber Pigtails, 3 M, Pack of 12 Color-Coded
Pack of 12 color-coded LC/APC singlemode pigtails, each 3 M long on 900 um G657A1 fiber and factory tested to 0.20 dB max insertion loss.
Damaged or lost in transit? Let us know within 7 days.
Product details

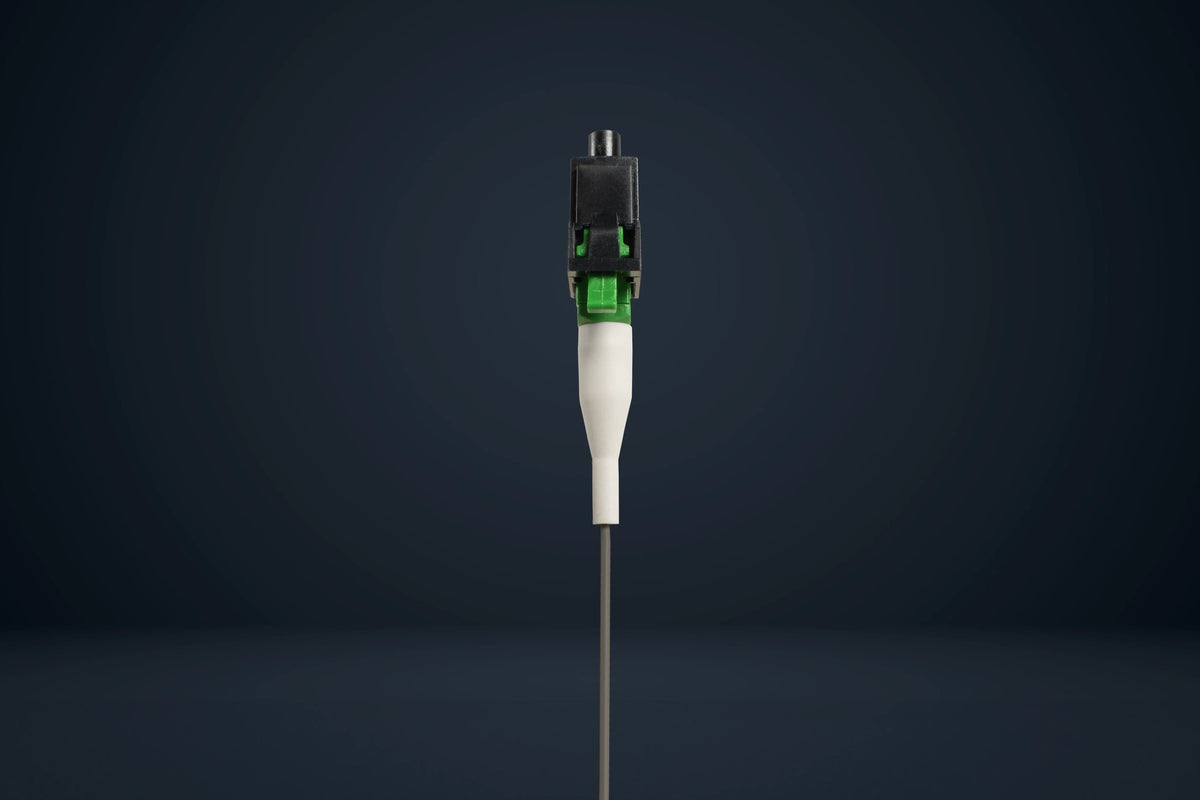

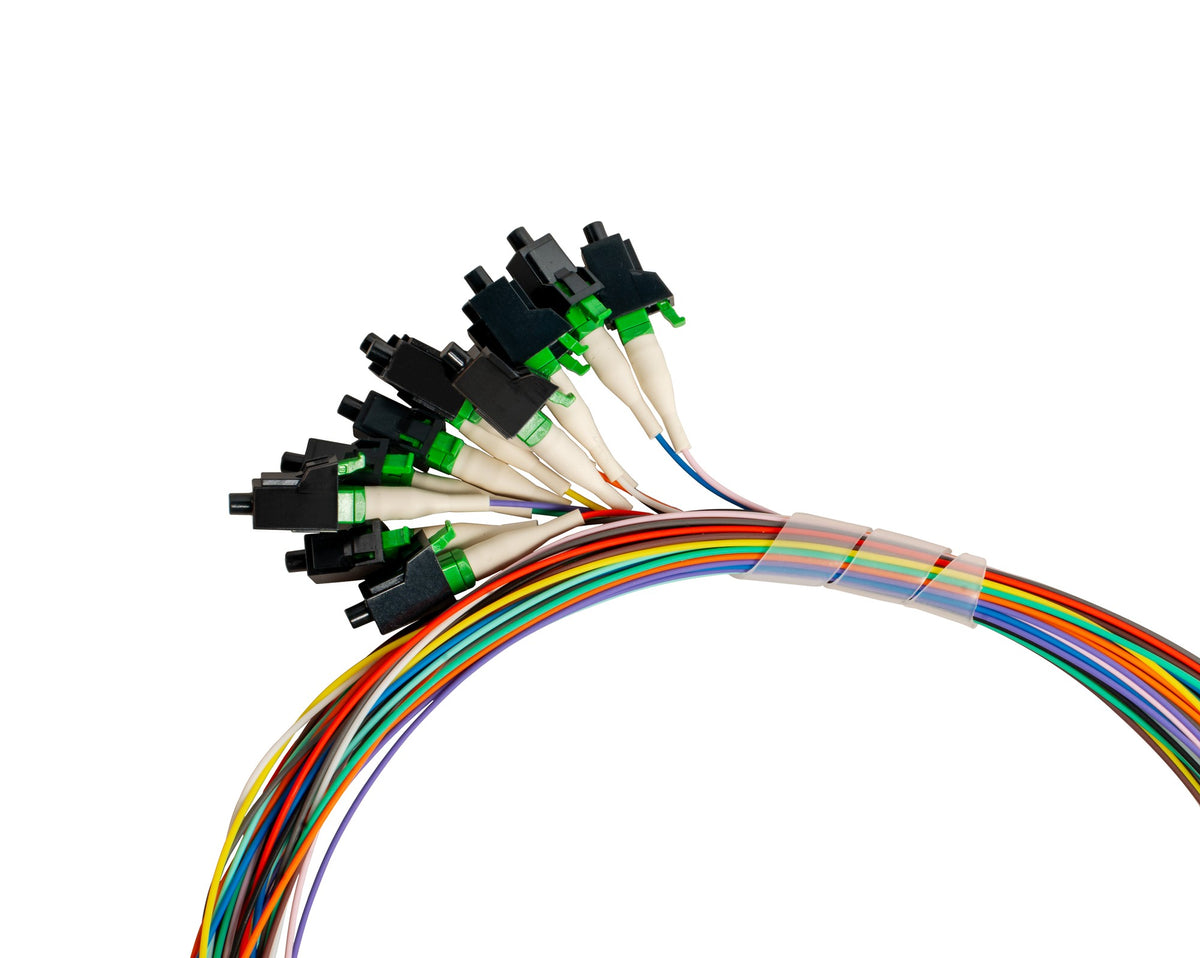

The Jonard Tools SPT-LCA3/12 is a pack of twelve 3 M (9.8 FT) singlemode pigtails, each terminated with a precision-polished LC/APC connector on G657A1 (OS2) fiber. The fibers follow the TIA-598-C color code (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua) so each strand is quick to identify when fusion splicing into distribution cables or patch panels.
The 900 µm tight-buffered construction handles routing and installation, and zirconia ceramic ferrules keep insertion loss low and repeatable. Every fiber is factory tested to 0.20 dB max insertion loss and 50 dB min return loss for FTTH, data center, and telecom single-mode networks.
- Brand
- Jonard Tools
- SKU / MPN
- JONASPT-LCA3/12
Product Specifications
- Sold as: pack of 12 pigtails, one per TIA-598-C color (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua)
- Connector: LC/APC, precision polished, zirconia ceramic ferrule
- Fiber: G657A1 singlemode (OS2); 900 µm tight-buffered construction
- Length: 3 M (9.84 FT) per pigtail
- Insertion loss 0.20 dB max; return loss 50 dB min; every fiber factory tested
- High-strength fiber coating for flexibility and strain relief during routing and installation
- For fusion splicing into distribution cables or patch panels in FTTH, data center, and telecom single-mode networks
- Package dimensions 8 IN x 7 IN; weight 0.1 lb
- Country of origin: Poland
