Jonard Tools TK-DC02 Data Center Electrical Utility Kit
20-component data center electrical kit with 1000V insulated hand tools, an ACM-1500DC CAT III 1500V clamp meter and a lug crimper in a BP-100 backpack.
Damaged or lost in transit? Let us know within 7 days.
Product details
The Jonard Tools TK-DC02 Data Center Electrical Utility Kit covers the power-side work around a data center: stripping and terminating heavy-gauge conductors, crimping lugs and ring terminals, pulling wire through conduit, and verifying circuits at panels, PDUs, generator feeds, and service entrances.
Insulated pliers, strippers, and screwdrivers rated for live work to 1000V pair with an ACM-1500DC Solar+ CAT III 1500V clamp meter for AC and DC measurements, a TCC-1416 lug crimper with a 178-piece TCK-178 terminal kit, and strippers covering 8-30 AWG wire and round cable from 3/16 to 1-1/8 IN. The 20 components, including a SOL-F1 rechargeable flashlight, pack into the included BP-100 Technician's Tool Bag Backpack.
- Brand
- Jonard Tools
- SKU / MPN
- JONATK-DC02
Product Specifications

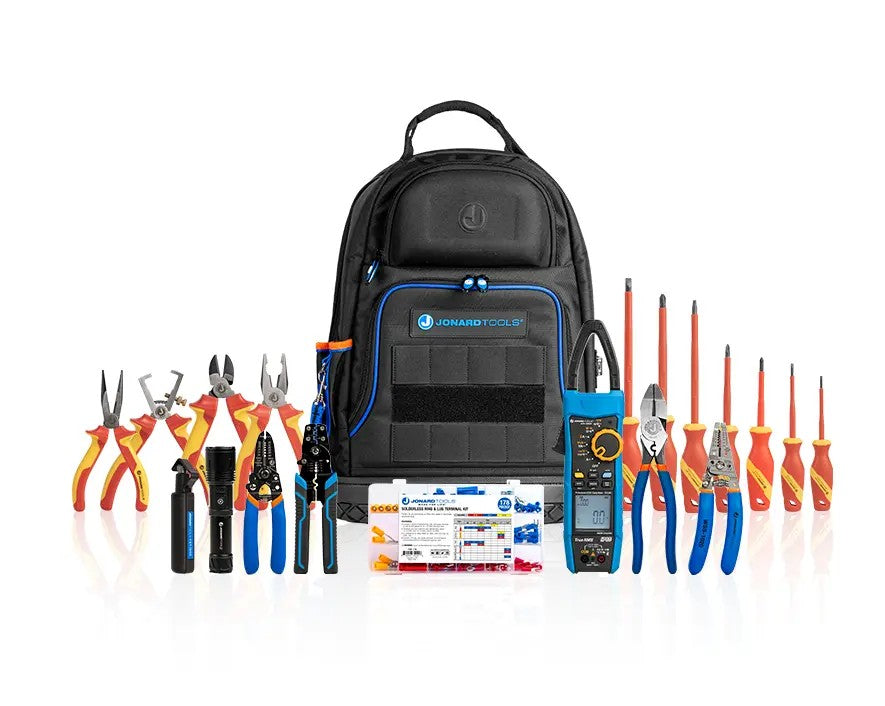

Includes:
- BP-100 – Technician's Tool Bag Backpack
- ACM-1500DC – Solar+ Clamp Meter CAT III 1500 V
- CST-1900 – Round Cable Strip & Ring Tool
- JIC-2030 – Wire Stripper, 20-30 AWG
- JIC-685 – Lineman's Pliers with Fish Tape Puller & Crimper
- WSS-1020 – Stainless Steel Curved Wire Stripper, 10-20 AWG
- INP-1072 – Insulated Lineman's Combo Pliers, 7 1/2 IN
- INP-2065 – Insulated Long Nose Pliers, 6 1/2 IN
- INP-3062 – Insulated Diagonal Pliers, 6 1/4 IN
- INP-4065 – Insulated Wire Stripper, 6 1/2 IN
- INS-180 – Phillips Insulated Screwdriver, #1 x 3 IN
- INS-2100 – Phillips Insulated Screwdriver, #2 x 4 IN
- INS-3150 – Phillips Insulated Screwdriver, #3 x 6 IN
- INS-4100 – Cabinet Slotted Insulated Screwdriver, 5/32 IN x 4 IN
- INS-475 – Cabinet Slotted Insulated Screwdriver, 1/8 IN x 3 IN
- INS-6150 – Cabinet Slotted Insulated Screwdriver, 1/4 IN x 6 IN
- INS-8175 – Cabinet Slotted Insulated Screwdriver, 5/16 IN x 7 IN
- TCC-1416 – Electric Lug and Terminal Crimper
- TCK-178 – Solderless Ring and Lug Terminal Kit, 178 Pcs
- SOL-F1 – Solis™ Rechargeable Tactical Flashlight
Specifications:
- 20 line items as listed, including the BP-100 backpack
- Packed in the included BP-100 Technician's Tool Bag Backpack
- For traditional (edge, enterprise, colocation), hyperscale, and AI network data centers (manufacturer spec)
- Insulated pliers and screwdrivers rated for live circuits up to 1000V (manufacturer spec)
- Stripping range: 8-30 AWG wire; round cable 3/16 to 1-1/8 IN diameter
- Terminating: ring, fork, spade and butt-splice terminals, 10-22 AWG
- Clamp meter: DC/AC current and voltage, resistance, capacitance, temperature, continuity/diode, up to 2500V and 999.9A
- Kit dimensions 14.76 x 7.4 x 18.7 IN; weight 15.53 lb
- UPC 810215350551
