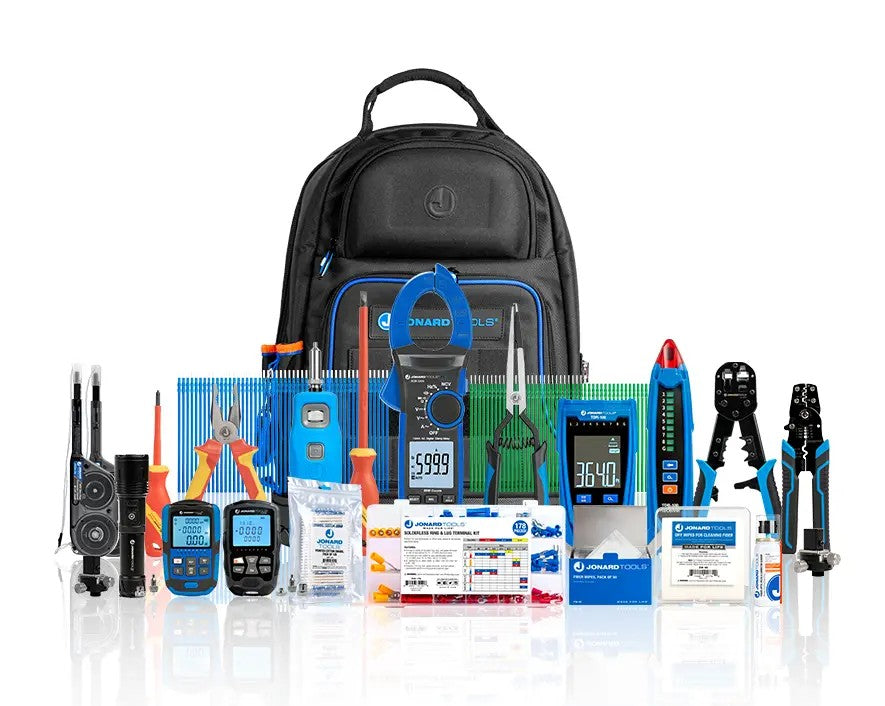

Jonard Tools TK-DC03 Data Center Operations & Maintenance Kit
22-item data center O&M kit with a WFM-100 fiber microscope, MPO click cleaners, an FPM-50S power meter and a TDR-100 cable tester in a BP-100 backpack.
Damaged or lost in transit? Let us know within 7 days.
Product details
The Jonard Tools TK-DC03 Data Center Operations & Maintenance Kit is for technicians who keep fiber, copper, and power infrastructure running day to day: inspecting and cleaning LC, SC, MPO 12-core, and MPO 16-core connectors, testing copper runs, and working safely around live grounding buses and PDU panels.
A WFM-100 wireless microscope inspects end-faces, an FCT-100 connector tool reaches high-density ports, and cleaning sticks, slim MPO click cleaners, swabs, wipes, and FCF-3 fluid handle contamination. An FPM-50S power meter and FLS-50S light source measure single-mode insertion loss, a TDR-100 traces copper runs and locates faults by distance, and an ACM-1000 clamp meter, TCC-1416 lug crimper, TCK-178 terminal kit, UC-4511 modular crimper, and 1000V insulated hand tools cover electrical and break-fix work. Ships in a BP-100 Technician's Tool Bag Backpack.
- Brand
- Jonard Tools
- SKU / MPN
- JONATK-DC03
Product Specifications
Includes:
- BP-100 – Technician's Tool Bag Backpack
- ACM-1000 – 1000A Digital Clamp Meter
- CLS-125/50 – Cleaning Sticks for Fiber Optic Connectors, 1.25 mm, Box of 50
- CLS-250/50 – Cleaning Sticks for Fiber Optic Connectors, 2.50 mm, Box of 50
- CWP-125 – Pointed Cotton Swabs, Pack of 125
- DW-90 – Dry Wipes for Cleaning Fiber
- FCCS-120 – Slim Fiber Connector Cleaner, MPO 12 Core
- FCCS-160 – Slim Fiber Connector Cleaner, MPO 16 Core
- FCT-100 – Fiber Connector Tool for LC, SC Connectors
- FLS-50S – Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
- FPM-50S – Mini Optical Power Meter, -50 to +26 dBm
- FW-50 – Fiber Wipes, Wet (Pack of 50)
- INP-1072 – Insulated Lineman's Combo Pliers, 7 1/2 IN
- INS-180 – Phillips Insulated Screwdriver, #1 x 3 IN
- INS-8175 – Cabinet Slotted Insulated Screwdriver, 5/16 IN x 7 IN
- TCC-1416 – Electric Lug and Terminal Crimper
- TCK-178 – Solderless Ring and Lug Terminal Kit, 178 Pcs
- TDR-100 – Network Cable Tester and TDR
- WFM-100 – Wireless Fiber Inspection Microscope with UPC Adapters
- SOL-F1 – Solis™ Rechargeable Tactical Flashlight
- UC-4511 – RJ45 & RJ11/12 Modular Pass-through Crimper with Tail Crimping Slots
- FCF-3 – Fiber Optic Splice & Connector Cleaner
Specifications:
- 22 line items as listed, including the BP-100 backpack
- Packed in the included BP-100 Technician's Tool Bag Backpack
- For traditional (edge, enterprise, colocation), hyperscale, and AI network data centers (manufacturer spec)
- Inspection: 1.25 mm LC and 2.5 mm FC/SC/ST connectors (PC/UPC); click cleaning for MPO/MTP 8, 12, 16, 24 and 32 connectors and ports
- Fiber testing: insertion loss at 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm
- Copper testing: tone and probe, wire mapping, TDR, continuity
- Insulated pliers and screwdrivers rated for live circuits up to 1000V (manufacturer spec)
- Kit dimensions 14.76 x 7.4 x 18.7 IN; weight 16.722 lb
- UPC 810215350568
✓ Added to your cart — keep building your order:
Pairs well with
Jonard Tools SD-00 Phillips #00 Precision Screwdriver, 60 mm

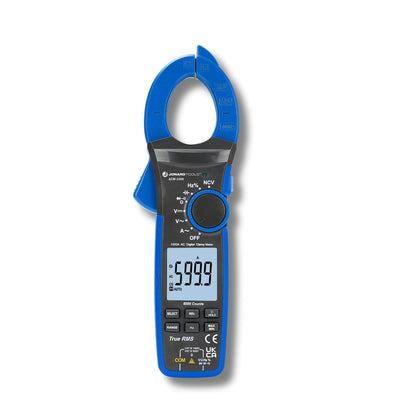

Jonard Tools ACM-1000 1000A TRMS Digital Clamp Meter with Non-Contact Voltage Tester
