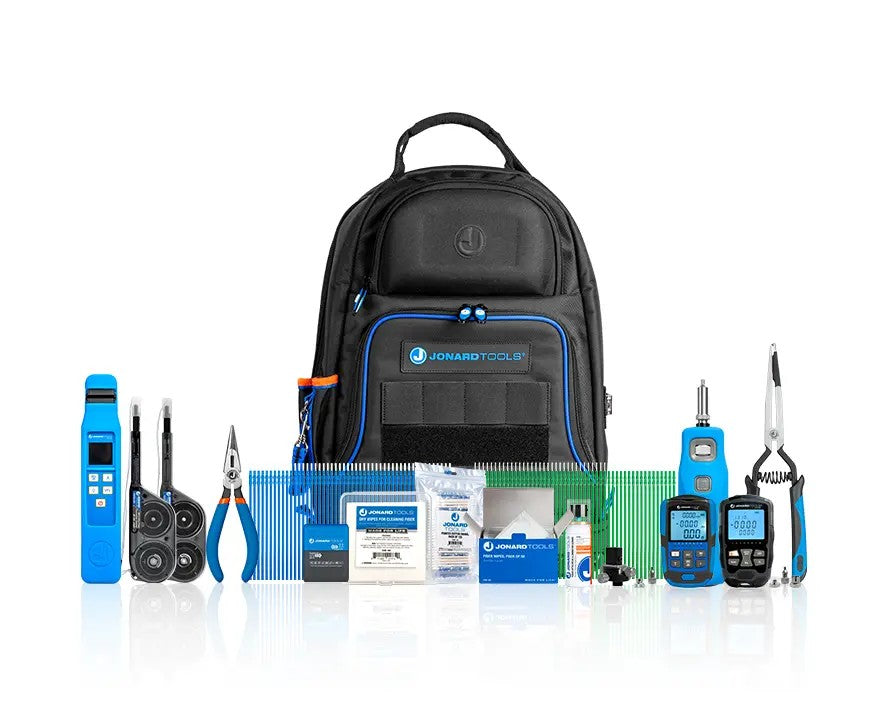

Jonard Tools TK-DC07 Data Center Fiber Inspection Kit
16-item fiber inspection kit with a WFM-100 wireless microscope, FCC-300 and MPO click cleaners, an FPM-50S power meter and an OFI-100 fiber identifier.
Damaged or lost in transit? Let us know within 7 days.
Product details
The Jonard Tools TK-DC07 Data Center Fiber Inspection Kit puts the tools for inspecting, cleaning, and verifying fiber connections in one backpack for enterprise, colocation, and hyperscale facilities, where connector contamination is the leading cause of link failures.
A WFM-100 wireless microscope inspects LC and SC end-faces in high-density panels. Cleaning covers 1.25 mm and 2.50 mm cleaning sticks, an FCC-300 universal click cleaner, FCCS-120 and FCCS-160 slim MPO 12- and 16-core cleaners, swabs, dry and wet wipes, and FCF-3 fluid. An FPM-50S power meter and FLS-50S light source measure single-mode insertion loss, an OFI-100 fiber identifier confirms live fibers without disrupting traffic, and an FCT-100 connector tool and JIC-842 long nose pliers work connectors where fingers will not reach. Ships in a BP-100 Technician's Tool Bag Backpack.
- Brand
- Jonard Tools
- SKU / MPN
- JONATK-DC07
Product Specifications
Includes:
- BP-100 – Technician's Tool Bag Backpack
- CLS-125/50 – Cleaning Sticks for Fiber Optic Connectors, 1.25 mm, Box of 50
- CLS-250/50 – Cleaning Sticks for Fiber Optic Connectors, 2.50 mm, Box of 50
- CWP-125 – Pointed Cotton Swabs, Pack of 125
- DW-90 – Dry Wipes for Cleaning Fiber
- FCC-300 – Universal Fiber Connector Cleaner
- FCCS-120 – Slim Fiber Connector Cleaner, MPO 12 Core
- FCCS-160 – Slim Fiber Connector Cleaner, MPO 16 Core
- FCT-100 – Fiber Connector Tool for LC, SC Connectors
- FLS-50S – Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
- FPM-50S – Mini Optical Power Meter, -50 to +26 dBm
- FW-50 – Fiber Wipes, Wet (Pack of 50)
- JIC-842 – Long Nose and Side Cutting Pliers
- OFI-100 – Advanced Optical Fiber Identifier with Power Meter & VFL
- WFM-100 – Wireless Fiber Inspection Microscope with UPC Adapters
- FCF-3 – Fiber Optic Splice & Connector Cleaner
Specifications:
- 16 line items as listed, including the BP-100 backpack
- Packed in the included BP-100 Technician's Tool Bag Backpack
- For traditional (edge, enterprise, colocation), hyperscale, and AI network data centers (manufacturer spec)
- Inspection: 1.25 mm LC and 2.5 mm FC/SC/ST connectors (PC/UPC) with the included UPC adapters
- Click cleaning: FC, LC, SC, ST, MU, LC-duplex, MU-duplex and MPO/MTP 8, 12, 16, 24 and 32 connectors and ports; cleaning sticks for 1.25 mm and 2.5 mm ferrules; wet and dry wiping
- Fiber testing: insertion loss at 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm; fiber identification tones 270 Hz, 1 kHz, 2 kHz; visual fault location 2 mW
- Kit dimensions 14.76 x 7.4 x 18.7 IN; weight 11.212 lb
- UPC 810215350605
