Jonard Tools TK-DC08 Data Center Fiber Installation Kit
19-item fiber installation kit with an AST-210 CableSaber+ slitter, an RFS-100 ribbon fiber separator, an FPM-50S power meter and an FLS-50S light source.
Damaged or lost in transit? Let us know within 7 days.
Product details

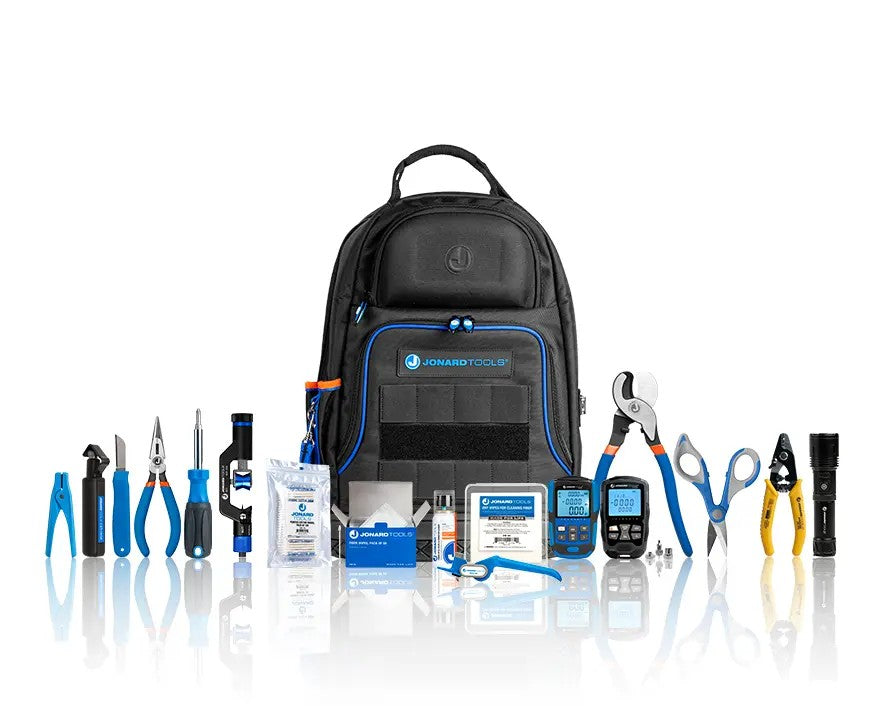

The Jonard Tools TK-DC08 Data Center Fiber Installation Kit covers backbone fiber work from cable prep through link verification: slitting and ringing armored and standard jackets, cutting Kevlar and aramid strength members, separating ribbon fiber for splicing, stripping buffer and coating layers, and checking finished links.
The AST-210 CableSaber+ slits armored cable, the CST-1900 strips round jackets from 3/16 to 1-1/8 IN, and the JIC-375 three-hole stripper handles jacket, buffer, and coating layers. JIC-186 Kevlar shears, a JIC-63050 high-leverage cutter, KN-7 splicing knife, and RCS-30 ratcheting slitter cover cutting, and an RFS-100 separates rollable ribbon fiber. An FPM-50S power meter, FLS-50S light source, and VFL-150 visual fault locator verify the run, with swabs, wipes, and FCF-3 cleaner for end-face prep. Ships in a BP-100 Technician's Tool Bag Backpack.
- Brand
- Jonard Tools
- SKU / MPN
- JONATK-DC08
Product Specifications
Includes:
- AST-210 – CableSaber+™ Armored Cable Slitter
- BP-100 – Technician's Tool Bag Backpack
- CST-1900 – Round Cable Strip & Ring Tool
- CWP-125 – Pointed Cotton Swabs, Pack of 125
- DW-90 – Dry Wipes for Cleaning Fiber
- FLS-50S – Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
- FPM-50S – Mini Optical Power Meter, -50 to +26 dBm
- FW-50 – Fiber Wipes, Wet (Pack of 50)
- JIC-186 – Wire & Kevlar® Cutting Shears
- JIC-842 – Long Nose and Side Cutting Pliers
- JIC-375 – Fiber Optic Stripper, Three Hole
- JIC-63050 – High Leverage Cable Cutter
- KN-7 – Ergonomic Cable Splicing Knife
- SD-61 – 6-in-1 Multi-Bit Screwdriver with Phillips and Slotted Bits
- RCS-30 – Ratcheting Duct and Cable Slitter
- RFS-100 – Rollable Ribbon Fiber Separator
- VFL-150 – Visual Fault Locator Kit
- SOL-F1 – Solis™ Rechargeable Tactical Flashlight
- FCF-3 – Fiber Optic Splice & Connector Cleaner
Specifications:
- 19 line items as listed, including the BP-100 backpack
- Packed in the included BP-100 Technician's Tool Bag Backpack
- For traditional (edge, enterprise, colocation), hyperscale, and AI network data centers (manufacturer spec)
- Stripping: round cable 3/16 to 1-1/8 IN; armored and thick-jacket cable 0.157 to 1.181 IN (4-30 mm) up to 0.256 IN thick; fiber 250 micron acrylate and 600-900 micron buffer coatings, 1.6-3.0 mm jackets
- Cutting: serrated Kevlar and wire cut; shear cut to 2/0 copper, 4/0 aluminum and 100-pair 24 AWG cable up to 13/16 IN
- Fiber testing: insertion loss at 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm; visual fault location 2 mW
- Driver: 6-in-1 multi-bit with #1 and #2 Phillips, 3/16 and 9/32 IN slotted, 1/4 and 5/16 IN hex
- Kit dimensions 14.76 x 7.4 x 18.7 IN; weight 13.177 lb
- UPC 810215350612
