Reliable Equipment R-CH-3000 1-1/2 Ton Lever Chain Hoist, 5 FT Lift
Reliable Equipment R-CH-3000 1-1/2 ton lever chain hoist, 5 FT lift, for lifting, pulling, binding, and strand lashing; built to ASME B30.21.
Damaged or lost in transit? Let us know within 7 days.
Product details

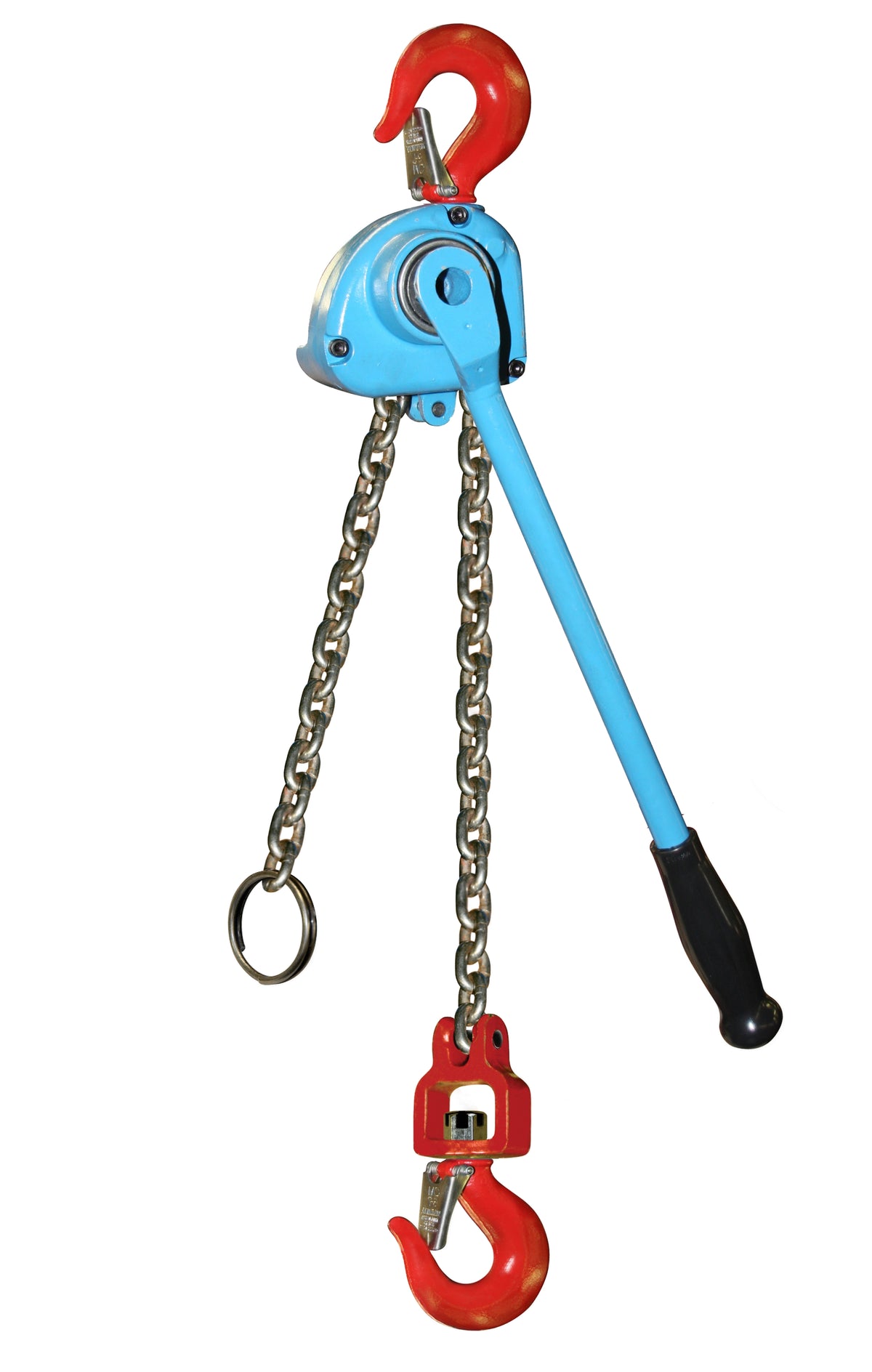

The Reliable Equipment R-CH-3000 is a 1-1/2 ton (3,000 lb) manually lever-operated link chain hoist with a 5 FT standard lift, built for the rigorous conditions of power utility and line construction work. Its field-proven ratchet-and-pawl mechanism keeps one pawl engaged at all times during lifting and lowering, the cast steel alloy body resists shock and fatigue, and the hoist rigs for lifting, pulling, or binding from any position with minimal head and face room. Commonly used for strand lashing and cable-pulling work. Manufactured to meet ASME B30.21.
- Brand
- Reliable Equipment
- SKU / MPN
- RELIR-CH-3000
Product Specifications
- Rated capacity: 1-1/2 ton (3,000 lb)
- Lift: 5 FT standard (Reliable lists 55-1/2 IN)
- Manually lever-operated link chain hoist; ratchet-and-pawl mechanism keeps one pawl engaged during lifting and lowering
- Commonly used for strand lashing and cable-pulling work
- Cast steel alloy construction resists shock and fatigue
- Safety hooks rotate 360 degrees and have spring latches
- Approx. pull: 72 lb; handle: 17 IN; head (minimum headroom): 11 IN
- Rigs for lifting, pulling, or binding from any position; pull the free chain to remove slack quickly
- Redundant safety measures prevent handle rotation or chain release under load
- Manufactured to meet ASME B30.21; approx. 15.25 lb
