Alliance Hose

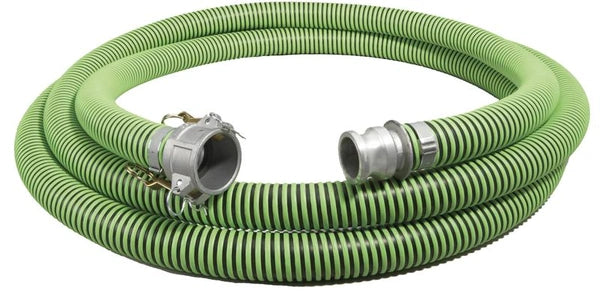

Alliance Hose 2 IN x 20 FT EPDM Suction Hose Assembly, Aluminum Cam & Eye Fittings (Tiger Green TG200)
2 IN x 20 FT green EPDM suction and discharge hose assembly on Kuriyama Tiger Green TG200, with aluminum cam-and-groove fittings and stainless bands.
$183.19Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details
This is a 2 IN x 20 FT EPDM suction and discharge hose assembly built on Kuriyama Tigerflex Tiger Green TG200 hose and fitted with stainless-secured aluminum cam-and-eye (cam-and-groove) couplings for quick connect and disconnect. The green EPDM tube handles water transfer and dewatering duty with full-vacuum capability, assembled and coupled by Alliance Hose & Rubber Co.
- Brand
- Alliance Hose
- SKU / MPN
- ALLIGH200-20CE
Product Specifications
- 2 IN inside diameter, 20 FT assembled length
- EPDM tube (Kuriyama Tigerflex Tiger Green TG200 series)
- Outside diameter approx. 2.51 IN
- Maximum working pressure 50 psi at 68°F (35 psi at 104°F)
- Full vacuum rating at 68°F
- Temperature range -40°F to 160°F
- Minimum bend radius approx. 5 IN at 68°F
- Hose weight approx. 0.67 lb/ft
- Aluminum cam & eye (cam-and-groove) end fittings with stainless hardware
- Assembled and coupled by Alliance Hose & Rubber Co.
✓ Added to your cart — keep building your order:
Pairs well with
Alliance Hose
Tigerflex Tiger Green TG Series 1-1/2 IN EPDM Suction Hose, 25 FT with Cuffed Ends
$102.14
Alliance Hose
Alliance Hose TG300-20CE 3 IN x 20 FT EPDM Suction/Discharge Hose Assembly, C x E Aluminum Camlocks
$214.95
Alliance Hose
Alliance Hose TG200-10CE 2 IN x 10 FT EPDM Water Suction & Discharge Hose Assembly, Cam & Groove Aluminum Fittings
$69.90
Alliance Hose

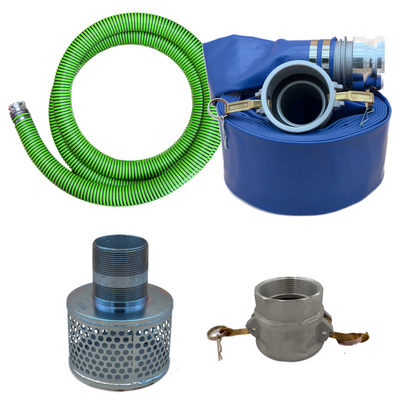

Alliance Hose PKM1-300 3 IN Pump Hose Kit (25 FT Discharge, 20 FT Suction, Strainer)
