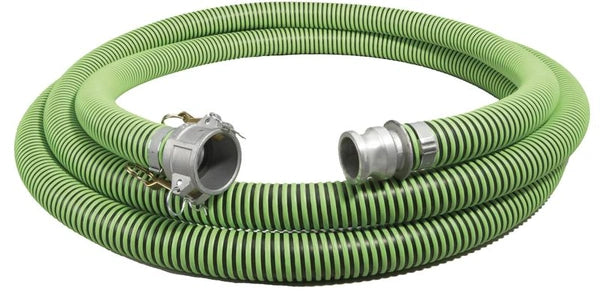

Alliance Hose TG300-20CE 3 IN x 20 FT EPDM Suction/Discharge Hose Assembly, C x E Aluminum Camlocks

Name: Alliance Hose TG300-20CE 3 IN x 20 FT EPDM Suction/Discharge Hose Assembly, C x E Aluminum Camlocks
Brand: Alliance Hose
SKU: ALLIGH300-20CE
Price: 214.95 USD
Availability: InStock

SKU ALLIGH300-20CE·In stock

Alliance Hose TG300-20CE 3 IN x 20 FT green EPDM suction and discharge hose assembly with aluminum C and E cam-and-groove fittings and stainless bands.

$214.95Sign in to see Pro price

This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.

Same-day shipOrder by 3 PM CST

Pay by cardSecure checkout

Easy returnsFast RMA process

Damaged or lost in transit? Let us know within 7 days.

Product details

Alliance Hose & Rubber TG300-20CE hose assembly: 3 IN ID x 20 FT green EPDM suction/discharge hose (Kuriyama Tiger Green TG300 base hose) fitted with C & E aluminum cam-and-groove fittings secured with stainless steel bands. Built for construction dewatering, water transfer, agricultural, and wastewater applications.

Brand: Alliance Hose
SKU / MPN: ALLIGH300-20CE

Product Specifications

Assembly part number: TG300-20CE (Alliance Hose & Rubber)
Base hose: Kuriyama Tigerflex Tiger Green TG300
ID: 3 IN; OD: 3.60 IN
Length: 20 FT
Fittings: aluminum Part C (coupler) x Part E (adapter) cam-and-groove
Bands: stainless steel
Tube: EPDM with rigid polyethylene helix; convoluted green cover
Working pressure: 45 psi at 68°F (30 psi at 104°F)
Vacuum: full vacuum at 68°F
Temperature range: -40°F to 160°F
Bend radius: 7 IN at 68°F
Hose weight: ~1.14 lbs/ft (approx. 22.8 lbs of hose per 20 FT, fittings additional)
