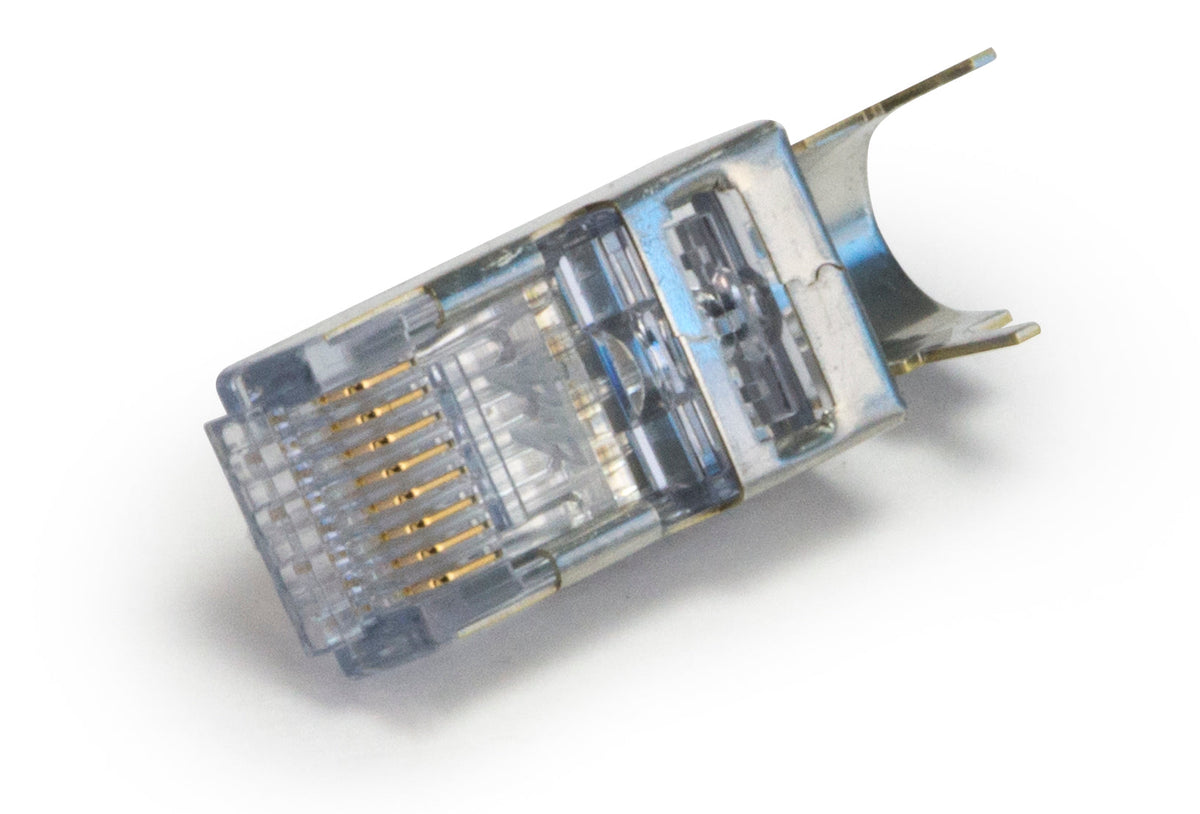

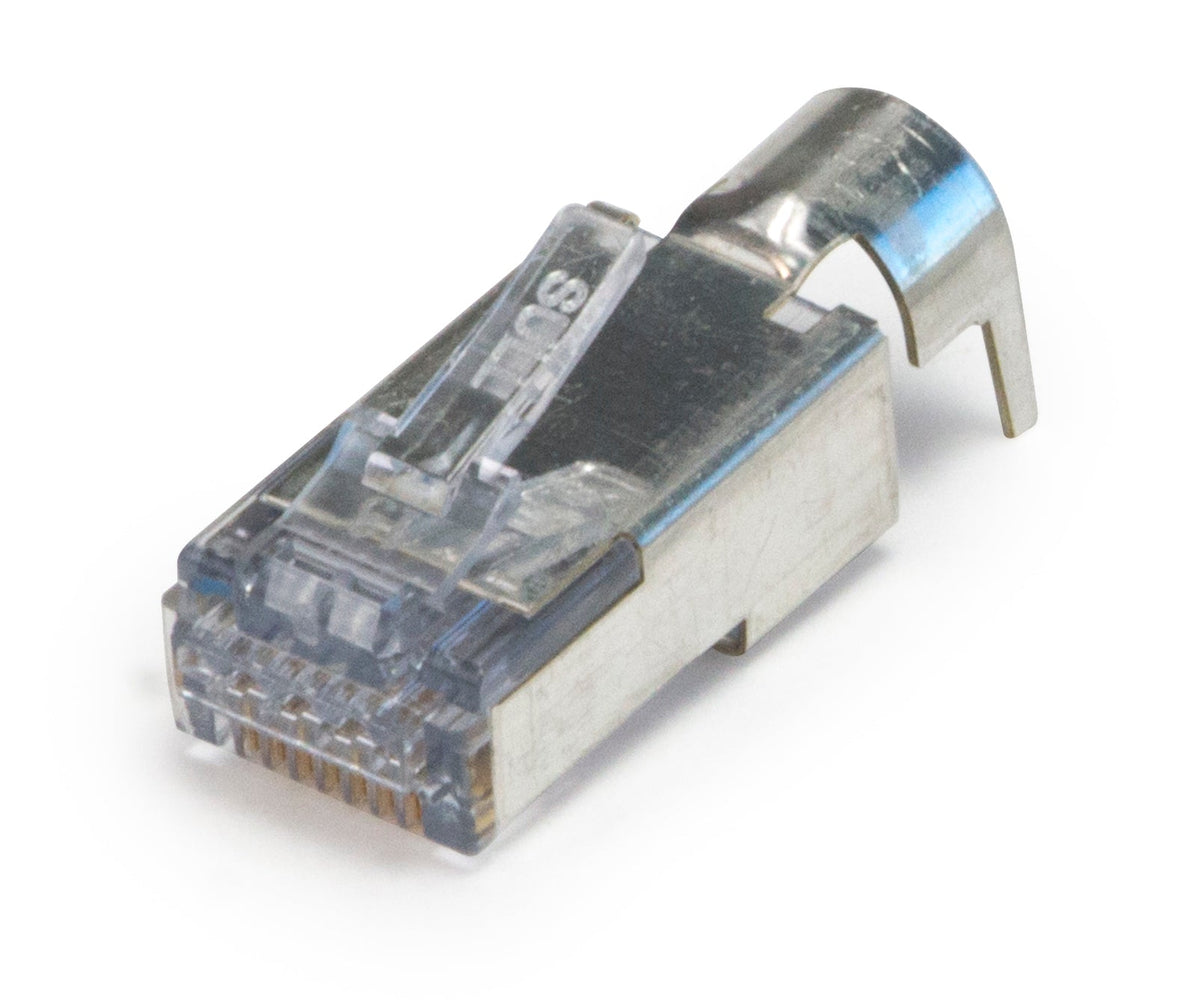

Platinum Tools 100025C ezEX44 Shielded External Ground CAT6 RJ45 Connector (25/Clamshell)
Platinum Tools ezEX44 shielded external-ground RJ45 pass-through connectors for CAT5e, CAT6 and CAT6A cable, 25 per clamshell.
$53.91Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details

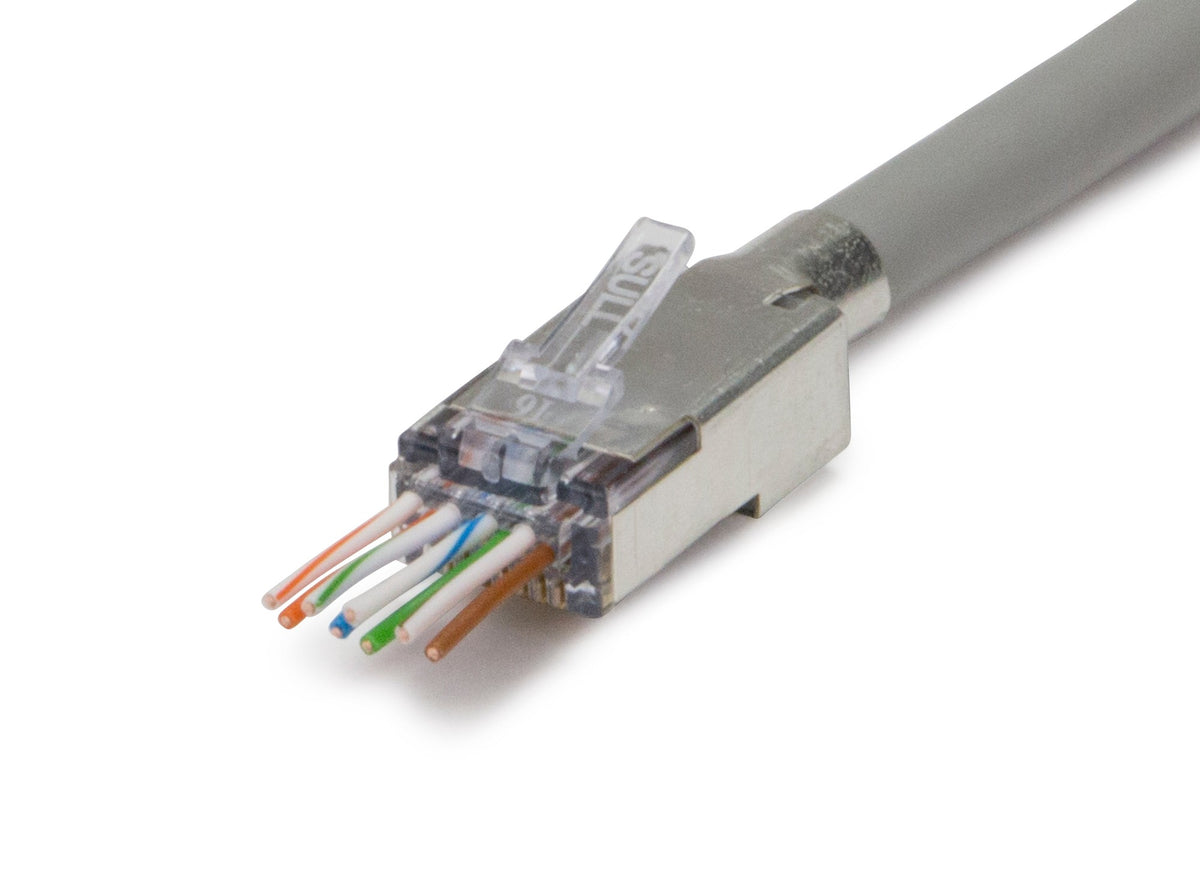

The Platinum Tools 100025C is a shielded, external ground ezEX-RJ45 connector engineered for high-performance CAT5e, CAT6, and CAT6A network terminations. Its patented Hi-Lo stagger load bar lets conductors pass completely through the front of the connector so the wiring sequence can be verified before crimping, producing fast, reliable terminations on larger-diameter cable. Supplied in a 25-piece clamshell.
- Brand
- Platinum Tools
- SKU / MPN
- PLAT100025C
Product Specifications
- Shielded ezEX-RJ45 connector with external ground
- Rated for CAT5e / CAT6 / CAT6A cabling
- Accepts 24-22 AWG solid or stranded conductors
- Conductor insulation diameter range: 0.039 IN - 0.044 IN (1.0 - 1.12 mm)
- Maximum cable outer diameter: 0.305 IN (7.75 mm)
- 50 micron gold-plated contacts
- Patented integrated Hi-Lo stagger load bar for conductor pass-through and verification
- TAA, TIA, RoHS, UL and FCC compliant
- Packaged 25 per clamshell
- Terminate with Platinum Tools EXO Crimp Frame and EXO-EX die system
