Platinum Tools 100027C ezEX48 Shielded External-Ground CAT6A RJ45 Connector (25/Clamshell)
Platinum Tools ezEX48 shielded external-ground RJ45 pass-through connectors sized for larger CAT6 and CAT6A conductors, 25 per clamshell.
$65.11Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details

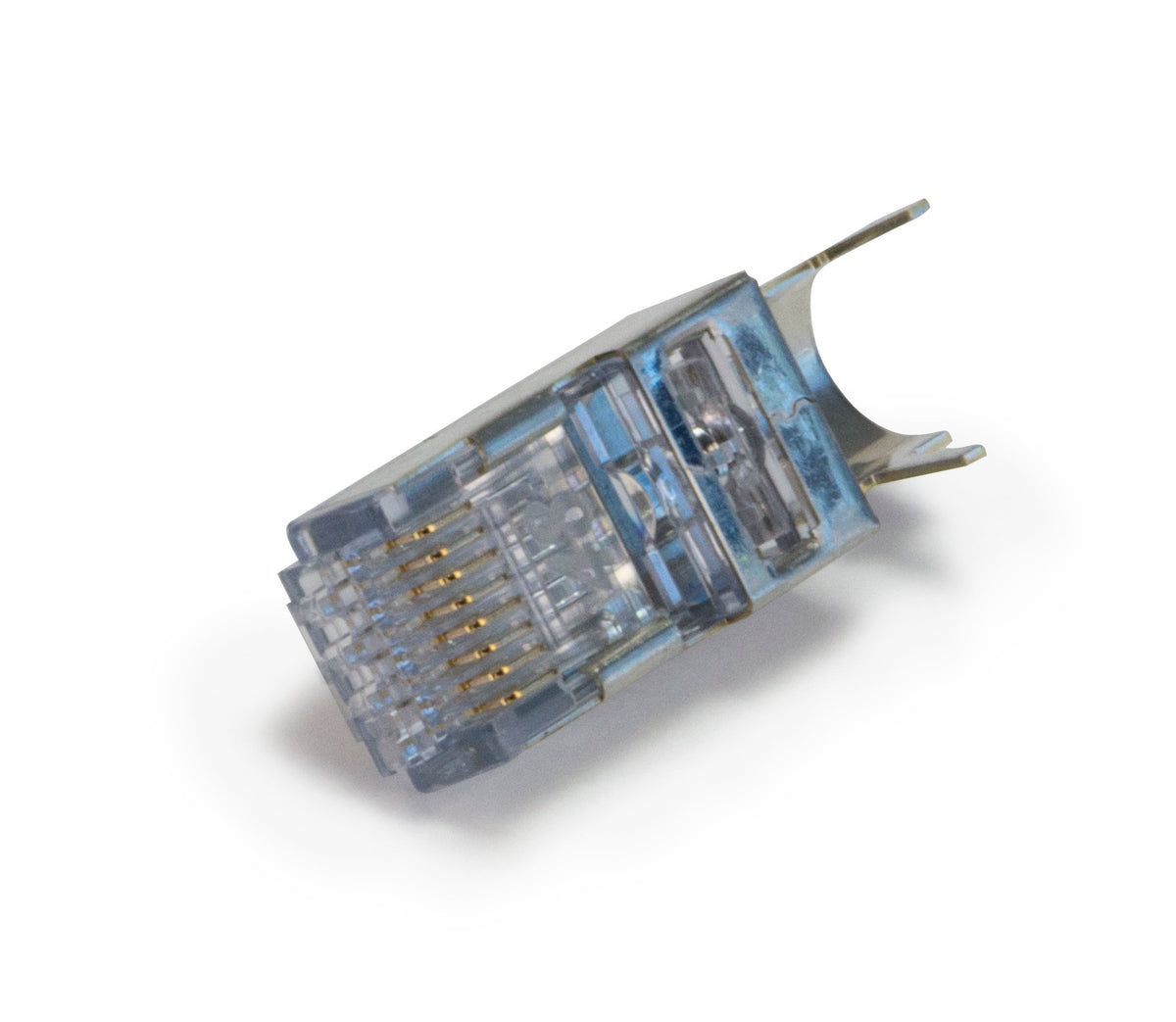

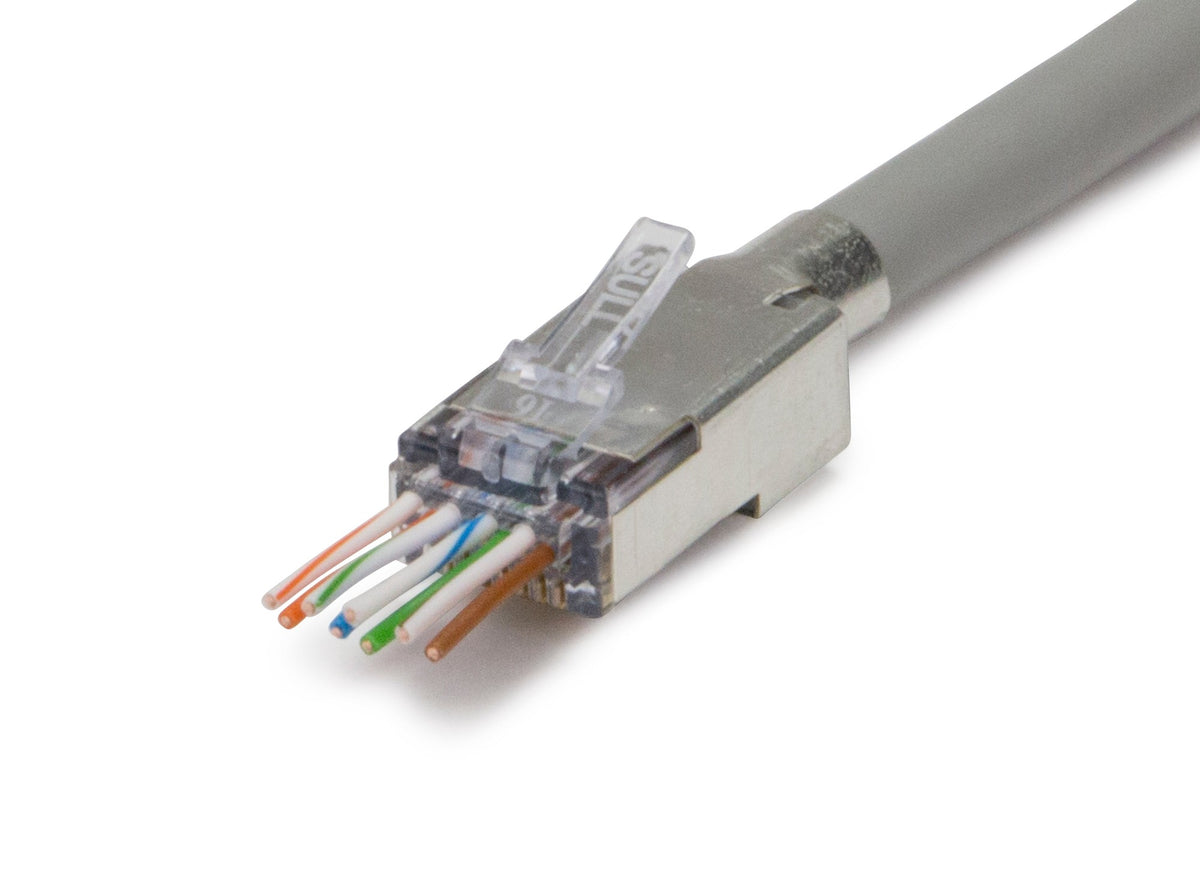

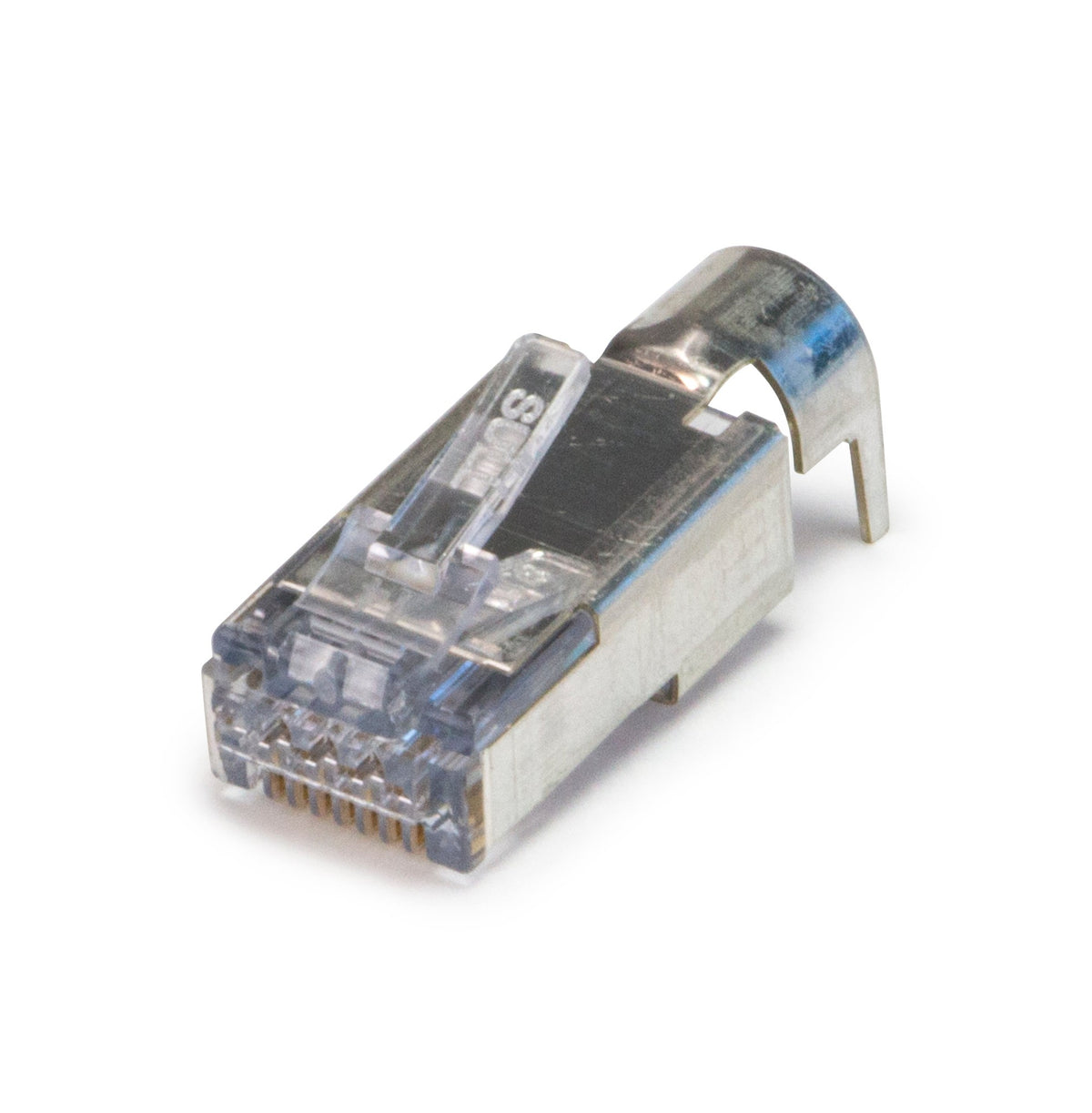

The Platinum Tools 100027C ezEX48 is a shielded, external-ground CAT6A RJ45 pass-through connector sold in a 25-piece clamshell. Its patented one-piece design with an integrated Hi-Lo stagger load bar lets large conductors pass through the front for easy wiring verification before termination. TAA, TIA, RoHS, UL, and FCC compliant; made in the USA. Terminate with the EXO Crimp Frame and EXO-EX die (100061C).
- Brand
- Platinum Tools
- SKU / MPN
- PLAT100027C
Product Specifications
- Category: CAT6A compliant, shielded (STP) with external ground
- Wire gauge: solid or stranded 24-22 AWG (listed by some distributors as 23-22 AWG)
- Conductor insulation diameter: 0.043 IN-0.048 IN (1.09-1.22 mm)
- Maximum cable outer diameter: 0.305 IN (7.75 mm)
- Contacts: 50 micron gold plated
- One-piece pass-through design with Hi-Lo stagger load bar
- Package: 25/clamshell
- TAA, TIA, RoHS, UL & FCC compliant; made in USA
- Requires EXO Crimp Frame and EXO-EX Die (100061C)
