Platinum Tools 100010B EZ-RJ45 CAT6 Connectors, Box of 100

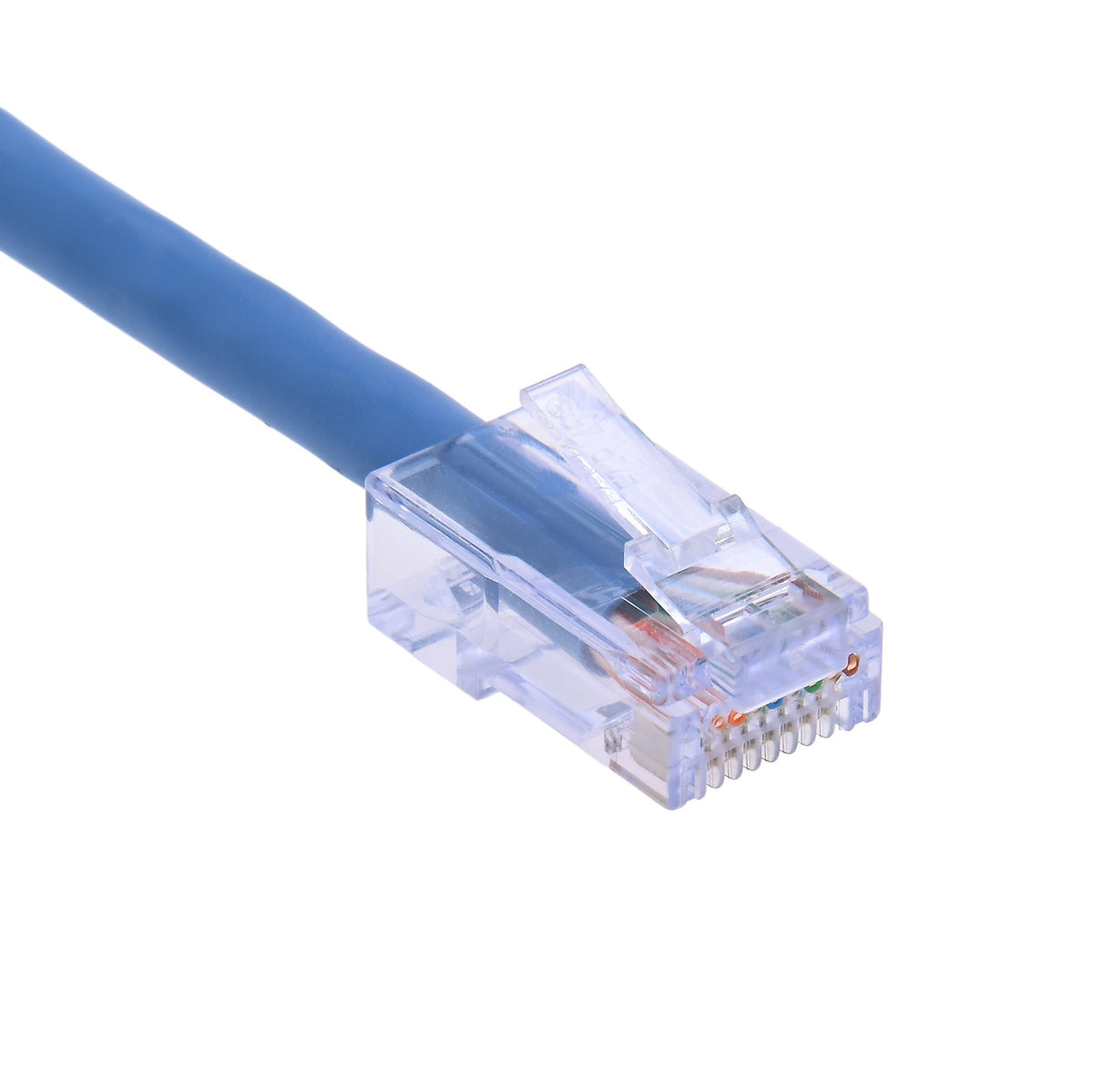

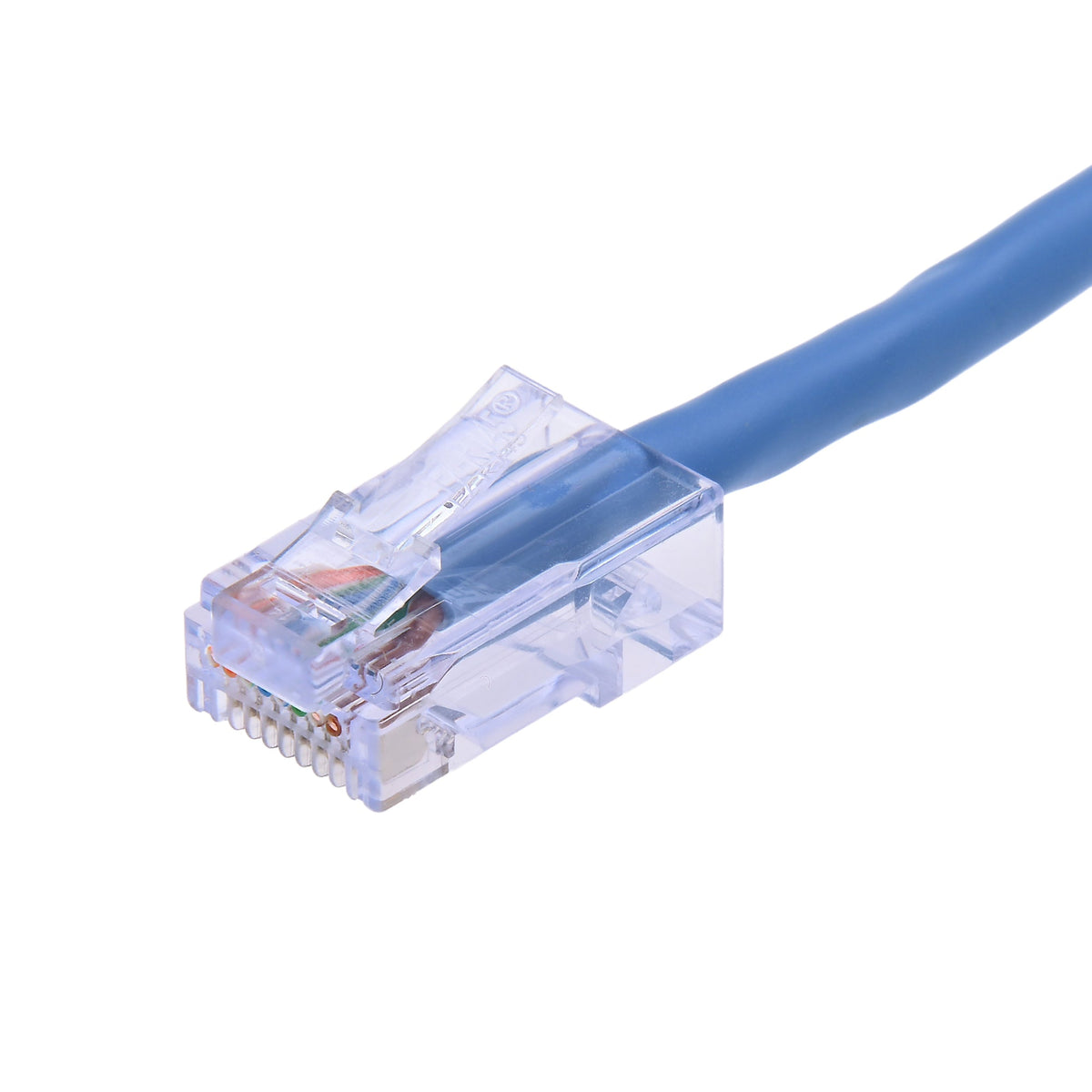

Box of 100 EZ-RJ45 pass-through CAT6 modular plugs whose conductors exit the front of the plug so wiring order can be verified before crimping.
$73.49Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details
Platinum Tools 100010B is a box of 100 EZ-RJ45 CAT6 connectors. The patented EZ-RJ45 design lets conductors pass completely through the connector and out the front, so technicians can verify the proper wiring sequence before crimping. The one-piece design works with both solid and stranded conductors and improves electrical performance by reducing the distance between wire twists and contacts.
- Brand
- Platinum Tools
- SKU / MPN
- PLAT100010B
Product Specifications
- Box of 100 connectors
- EZ-RJ45 CAT6 RJ45 modular plug
- Wires pass through and out the front for sequence verification
- Works with solid or stranded conductors, 24-23 AWG
- Maximum cable diameter 0.275 IN (6.98 mm)
- Maximum insulation diameter 0.040 IN (1.016 mm)
- 50 micron gold-plated contacts
- Rated to 1 Gb; meets ANSI/EIA/TIA/TAA specifications
- UL Listed E188111, UL94 V-0, RoHS3/FCC compliant
- Requires EZ-RJ45 compatible crimp tool
