Platinum Tools 106188J RJ45 Cat6 2-Piece Round-Solid 3-Prong Connector, 100/Jar
Platinum Tools 106188J two-piece RJ45 Cat6 modular plug with load bar and 3-prong gold-plated contacts for round solid cable; sold as a 100-piece jar.
$52.51Sign in to see Pro price
Sign in to see your contract pricing
This is the manufacturer's advertised price. Pro accounts pay contract price — it's free to apply.
Same-day shipOrder by 3 PM CST
Pay by cardSecure checkout
Easy returnsFast RMA process
Damaged or lost in transit? Let us know within 7 days.
Product details

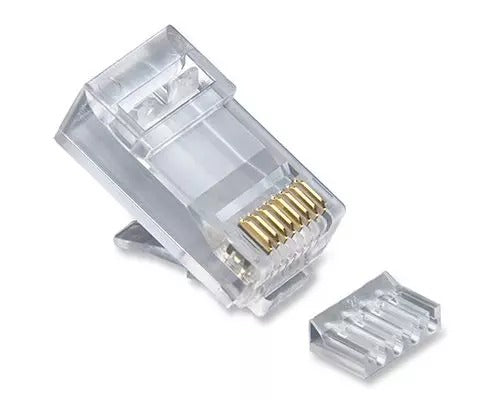

The Platinum Tools 106188J is a 2-piece RJ45 (8P8C) Cat6 modular plug for terminating Cat6 round, solid cable. It uses a staggered loading bar that acts as a stopping point for pair separation and maintains wiring configuration: simply flush-cut the conductors and slide the assembly into the connector to terminate. Features 3-prong contacts and 50-microinch gold plating, and ships 100 connectors per jar. RoHS and UL compliant.
- Brand
- Platinum Tools
- SKU / MPN
- PLAT106188J
Product Specifications
- RJ45 (8P8C) Cat6 modular plug, 2-piece design
- For round, solid Cat6 cable
- 3-prong contact design with 50µin. gold plating
- Staggered loading bar / liner for pair separation and wire configuration
- Maximum conductor O.D.: 0.044 IN (1.12 mm)
- Maximum cable jacket O.D.: 0.285 IN (7.24 mm)
- RoHS and UL compliant

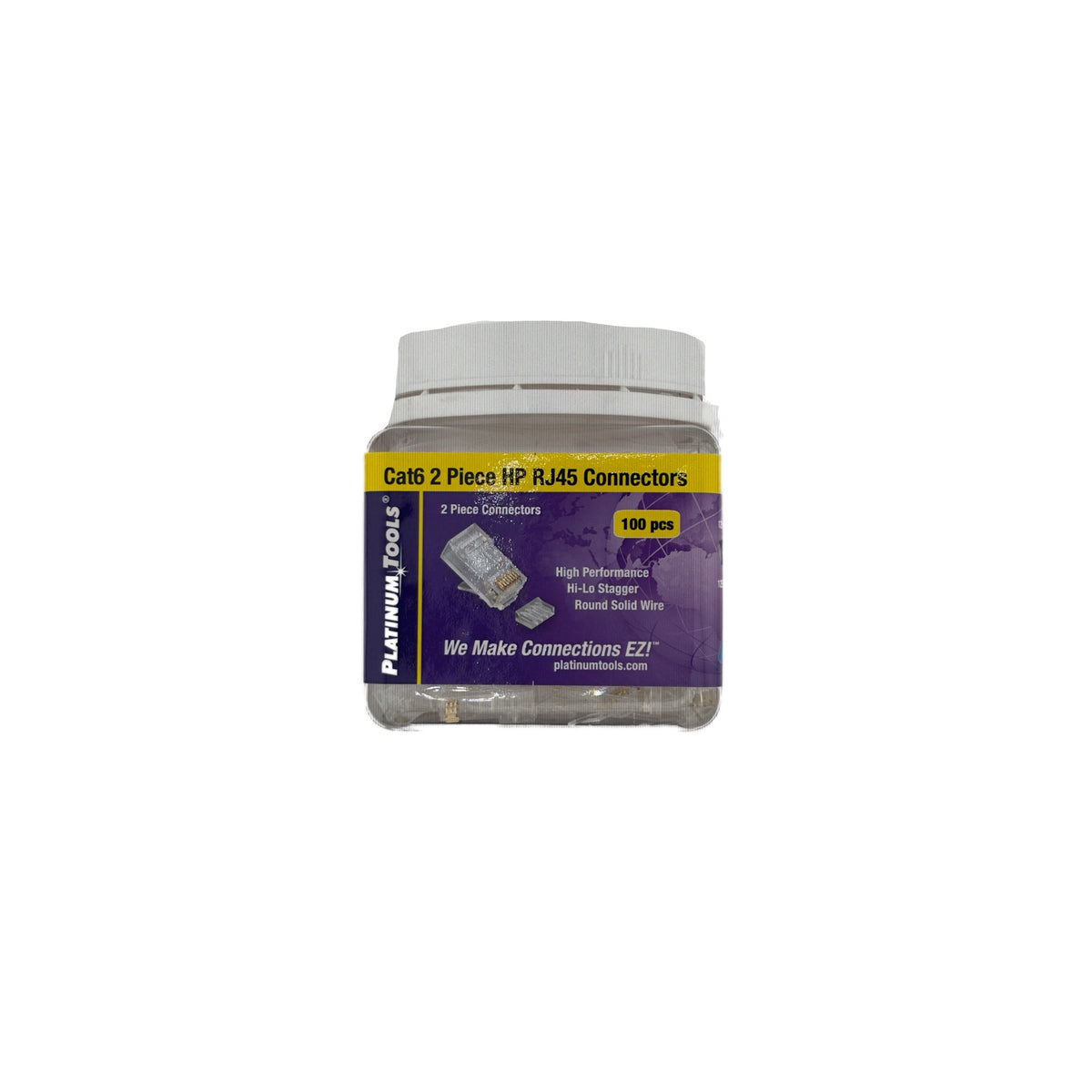

- Packaged 100 connectors per jar
